PwgSmRev1-185 - ScanMediaPathStatus

complexType ScanMediaPathStatus

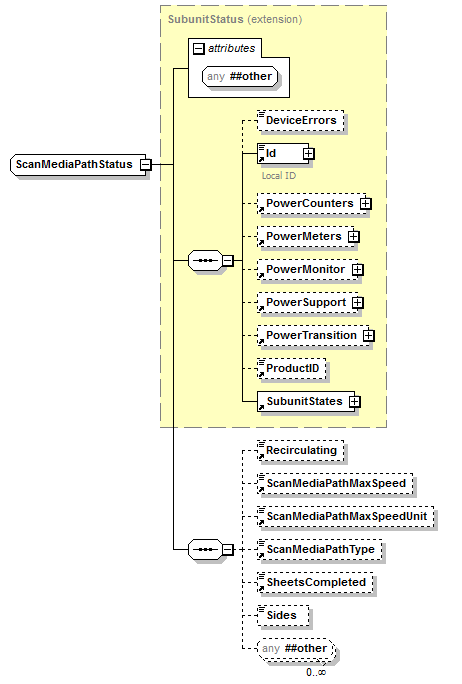

diagram PwgSmRev1-185_p1062.png
namespace http://www.pwg.org/schemas/2012/12/sm
type extension of SubunitStatus
properties
base SubunitStatus
children DeviceErrors Id PowerCounters PowerMeters PowerMonitor PowerSupport PowerTransition ProductID SubunitStates Recirculating ScanMediaPathMaxSpeed ScanMediaPathMaxSpeedUnit ScanMediaPathType SheetsCompleted Sides
used by
element ScanMediaPathStatus
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:complexType name="ScanMediaPathStatus">
  <xs:complexContent>
    <xs:extension base="SubunitStatus">
      <xs:sequence>
        <!-- SM/1.0 Printer group import -->
        <xs:element ref="Recirculating" minOccurs="0"/>
        <xs:element ref="ScanMediaPathMaxSpeed" minOccurs="0"/>
        <xs:element ref="ScanMediaPathMaxSpeedUnit" minOccurs="0"/>
        <xs:element ref="ScanMediaPathType" minOccurs="0"/>
        <xs:element ref="SheetsCompleted" minOccurs="0"/>
        <xs:element name="Sides" type="SidesType" minOccurs="0"/>
        <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

element ScanMediaPathStatus/Sides
diagram PwgSmRev1-185_p1063.png
namespace http://www.pwg.org/schemas/2012/12/sm
type SidesType
properties
minOcc 0
maxOcc 1
content simple
used by
elements CopyInput CopyOutput ServiceSpecificDocumentProcessing
complexTypes FaxOutDocumentProcessingType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ScanDocumentProcessingType
source <xs:element name="Sides" type="SidesType" minOccurs="0"/>
