PwgSmRev1-185 - PrintDocumentProcessingDefaultType

complexType PrintDocumentProcessingDefaultType

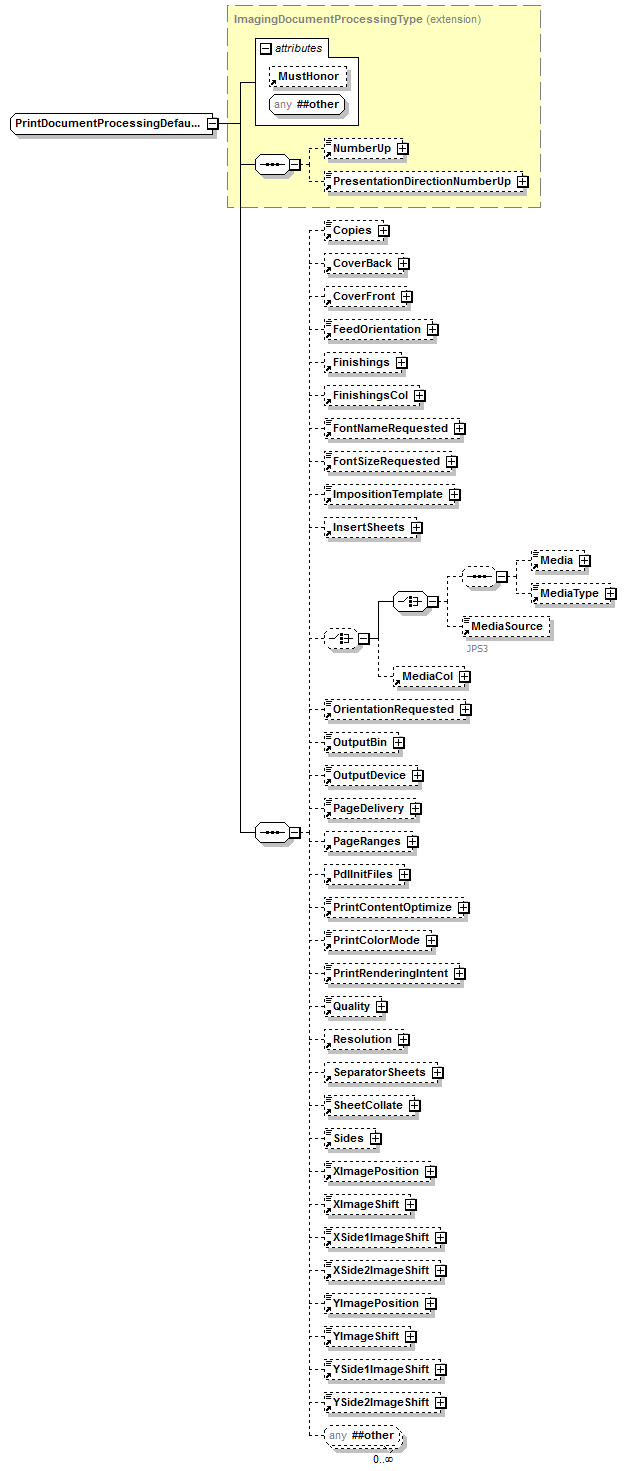

diagram

namespace

http://www.pwg.org/schemas/2012/12/sm

type

extension of ImagingDocumentProcessingType

properties

base	ImagingDocumentProcessingType

children

NumberUp PresentationDirectionNumberUp Copies CoverBack CoverFront FeedOrientation Finishings FinishingsCol FontNameRequested FontSizeRequested ImpositionTemplate InsertSheets Media MediaType MediaSource MediaCol OrientationRequested OutputBin OutputDevice PageDelivery PageRanges PdlInitFiles PrintContentOptimize PrintColorMode PrintRenderingIntent Quality Resolution SeparatorSheets SheetCollate Sides XImagePosition XImageShift XSide1ImageShift XSide2ImageShift YImagePosition YImageShift YSide1ImageShift YSide2ImageShift

used by

elements

PrintDocumentTicketDefaultType/PrintDocumentProcessing PrintJobTicketDefaultType/PrintDocumentProcessing

attributes

Name	Type	Use	Default	Fixed	Annotation
MustHonor	xs:boolean

source

<xs:complexType name="PrintDocumentProcessingDefaultType">
<xs:complexContent>
    <xs:extension base="ImagingDocumentProcessingType">
      <xs:sequence>

        <xs:element ref="Copies" minOccurs="0"/>
        <xs:element ref="CoverBack" minOccurs="0"/>
        <xs:element ref="CoverFront" minOccurs="0"/>
        <xs:element ref="FeedOrientation" minOccurs="0"/>
        <xs:element ref="Finishings" minOccurs="0"/>
        <xs:element ref="FinishingsCol" minOccurs="0"/>
        <xs:element ref="FontNameRequested" minOccurs="0"/>
        <xs:element ref="FontSizeRequested" minOccurs="0"/>
        <xs:element ref="ImpositionTemplate" minOccurs="0"/>
        <xs:element ref="InsertSheets" minOccurs="0"/>
        <xs:choice minOccurs="0">
          <xs:choice>
            <xs:sequence minOccurs="0">
              <xs:element ref="Media" minOccurs="0"/>
              <xs:element ref="MediaType" minOccurs="0"/>
            </xs:sequence>
            <xs:element ref="MediaSource" minOccurs="0">
              <xs:annotation>
                <xs:documentation>JPS3</xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:choice>
          <xs:element ref="MediaCol" minOccurs="0"/>
        </xs:choice>
        <xs:element ref="OrientationRequested" minOccurs="0"/>
        <xs:element ref="OutputBin" minOccurs="0"/>
        <xs:element ref="OutputDevice" minOccurs="0"/>
        <xs:element ref="PageDelivery" minOccurs="0"/>
        <xs:element ref="PageRanges" minOccurs="0"/>
        <xs:element ref="PdlInitFiles" minOccurs="0"/>
        <xs:element ref="PrintContentOptimize" minOccurs="0"/>
        <xs:element ref="PrintColorMode" minOccurs="0"/>
        <xs:element ref="PrintRenderingIntent" minOccurs="0"/>
        <xs:element ref="Quality" minOccurs="0"/>
        <xs:element ref="Resolution" minOccurs="0"/>
        <xs:element ref="SeparatorSheets" minOccurs="0"/>
        <xs:element ref="SheetCollate" minOccurs="0"/>
        <xs:element ref="Sides" minOccurs="0"/>
        <xs:element ref="XImagePosition" minOccurs="0"/>
        <xs:element ref="XImageShift" minOccurs="0"/>
        <xs:element ref="XSide1ImageShift" minOccurs="0"/>
        <xs:element ref="XSide2ImageShift" minOccurs="0"/>
        <xs:element ref="YImagePosition" minOccurs="0"/>
        <xs:element ref="YImageShift" minOccurs="0"/>
        <xs:element ref="YSide1ImageShift" minOccurs="0"/>
        <xs:element ref="YSide2ImageShift" minOccurs="0"/>
        <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
      </xs:sequence>
    </xs:extension>
</xs:complexContent>

</xs:complexType>
