PwgSmRev1-185 - ResolutionType

complexType ResolutionType

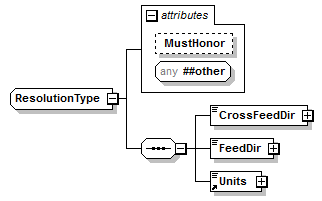

diagram PwgSmRev1-185_p546.png
namespace http://www.pwg.org/schemas/2012/12/sm
children CrossFeedDir FeedDir Units
used by
element Resolution
attributes
Name  Type  Use  Default  Fixed  Annotation
MustHonor  xs:boolean
source <xs:complexType name="ResolutionType">
  <xs:sequence>
    <xs:element name="CrossFeedDir">
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="CrossFeedDirType">
            <xs:attribute ref="MustHonor"/>
            <xs:anyAttribute namespace="##other"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="FeedDir">
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="FeedDirType">
            <xs:attribute ref="MustHonor"/>
            <xs:anyAttribute namespace="##other"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element ref="Units"/>
  </xs:sequence>
  <xs:attribute name="MustHonor" type="xs:boolean"/>
  <xs:anyAttribute namespace="##other" processContents="lax"/>
</xs:complexType>

attribute ResolutionType/@MustHonor
namespace http://www.pwg.org/schemas/2012/12/sm
type xs:boolean
used by
elements AutoExposure ScalingType/AutoScaling AutoSkewCorrection BatchMode Brightness ColorEntry ColorMode CompressionQualityFactor ContentType Contrast Copies CoverSheetInfo CoverType ResolutionType/CrossFeedDir DocumentSizeAutoDetect Exposure ResolutionType/FeedDir FeedOrientation FilmScanMode Finishing FontNameRequested FontSizeRequested HeaderPrint ImpositionTemplate InputSource JobCopies JobDelayOutputUntil JobDelayOutputUntilTime JobHoldUntil JobHoldUntilTime JobPhoneNumber JobPriority JobRecipientName JobSheetMessage JobSheets Media MediaBox MediaInputTrayCheck MediaType MultipleDocumentsHandling NumberUp OrientationRequested OutputBin OutputDevice PageDelivery PagesPerSubset PresentationDirectionNumberUp PrintColorMode PrintContentOptimize PrintRenderingIntent Quality Rotation SaveDocumentFormat ScalingType/ScalingHeight ScanRegions Sharpness SheetCollate Sides Units XImagePosition XImageShift XSide1ImageShift XSide2ImageShift YImagePosition YImageShift YSide1ImageShift YSide2ImageShift
complexTypes CopyDocumentProcessingCapabilitiesType CopyJobTicketCapabilitiesType CopyJobTicketType CoverColType DefaultTransformTicketType DestinationType FaxOutDocumentTicketCapabilitiesType FaxOutDocumentTicketType FaxOutJobTicketCapabilitiesType FaxOutJobTicketType FinishingsColType FinishingsType ForceFrontSideType ImagesToTransferType ImagingDocumentProcessingCapabilitiesType ImagingDocumentProcessingType ImagingJobProcessingCapabilitiesType ImagingJobProcessingType InsertSheetsType JobAccountingSheetsType JobSaveDispositionType JobSheetsColType MediaColType OverridesType PageRangesType PdlInitFilesType PrintDocumentTicketCapabilitiesType PrintDocumentTicketDefaultType PrintDocumentTicketType PrintJobTicketDefaultType PrintJobTicketType ProofPrintType ScalingType ScanJobTicketCapabilitiesType ScanJobTicketType SeparatorSheetsType TransformJobTicketCapabilitiesType
source <xs:attribute name="MustHonor" type="xs:boolean"/>

element ResolutionType/CrossFeedDir
diagram PwgSmRev1-185_p547.png
namespace http://www.pwg.org/schemas/2012/12/sm
type extension of CrossFeedDirType
properties
content complex
facets
Kind Value Annotation
minInclusive 1
attributes
Name  Type  Use  Default  Fixed  Annotation
MustHonor  xs:boolean
source <xs:element name="CrossFeedDir">
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="CrossFeedDirType">
        <xs:attribute ref="MustHonor"/>
        <xs:anyAttribute namespace="##other"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

element ResolutionType/FeedDir
diagram PwgSmRev1-185_p548.png
namespace http://www.pwg.org/schemas/2012/12/sm
type extension of FeedDirType
properties
content complex
facets
Kind Value Annotation
minInclusive 1
attributes
Name  Type  Use  Default  Fixed  Annotation
MustHonor  xs:boolean
source <xs:element name="FeedDir">
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="FeedDirType">
        <xs:attribute ref="MustHonor"/>
        <xs:anyAttribute namespace="##other"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
