PwgSmRev1-185 - OverridesType

complexType OverridesType
diagram PwgSmRev1-185_p526.png
namespace http://www.pwg.org/schemas/2012/12/sm
children Override
used by
element Overrides
attributes
Name  Type  Use  Default  Fixed  Annotation
MustHonor  xs:boolean
source <xs:complexType name="OverridesType">
  <xs:sequence>
    <xs:element name="Override" maxOccurs="unbounded">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="DocumentCopies" minOccurs="0">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="CopiesRange" type="RangeOfIntType" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="DocumentNumbers" minOccurs="0">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="NumberRange" type="RangeOfIntType" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="OverridingElements" minOccurs="0">
            <xs:complexType>
              <xs:sequence>
                <xs:any namespace="##any" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="Pages">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="PageRange" type="RangeOfIntType" maxOccurs="unbounded"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
  <xs:attribute ref="MustHonor"/>
  <xs:anyAttribute namespace="##other" processContents="lax"/>
</xs:complexType>

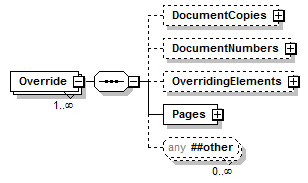

element OverridesType/Override
diagram PwgSmRev1-185_p527.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 1
maxOcc unbounded
content complex
children DocumentCopies DocumentNumbers OverridingElements Pages
source <xs:element name="Override" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="DocumentCopies" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="CopiesRange" type="RangeOfIntType" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="DocumentNumbers" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="NumberRange" type="RangeOfIntType" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="OverridingElements" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:any namespace="##any" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="Pages">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="PageRange" type="RangeOfIntType" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element OverridesType/Override/DocumentCopies
diagram PwgSmRev1-185_p528.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children CopiesRange
source <xs:element name="DocumentCopies" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="CopiesRange" type="RangeOfIntType" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

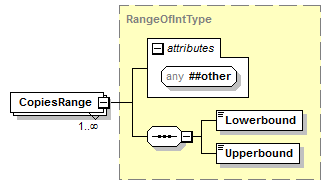

element OverridesType/Override/DocumentCopies/CopiesRange
diagram PwgSmRev1-185_p529.png
namespace http://www.pwg.org/schemas/2012/12/sm
type RangeOfIntType
properties
minOcc 1
maxOcc unbounded
content complex
children Lowerbound Upperbound
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:element name="CopiesRange" type="RangeOfIntType" maxOccurs="unbounded"/>

element OverridesType/Override/DocumentNumbers
diagram PwgSmRev1-185_p530.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children NumberRange
source <xs:element name="DocumentNumbers" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="NumberRange" type="RangeOfIntType" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element OverridesType/Override/DocumentNumbers/NumberRange
diagram PwgSmRev1-185_p531.png
namespace http://www.pwg.org/schemas/2012/12/sm
type RangeOfIntType
properties
minOcc 1
maxOcc unbounded
content complex
children Lowerbound Upperbound
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:element name="NumberRange" type="RangeOfIntType" maxOccurs="unbounded"/>

element OverridesType/Override/OverridingElements
diagram PwgSmRev1-185_p532.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
source <xs:element name="OverridingElements" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:any namespace="##any" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element OverridesType/Override/Pages
diagram PwgSmRev1-185_p533.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
content complex
children PageRange
source <xs:element name="Pages">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="PageRange" type="RangeOfIntType" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

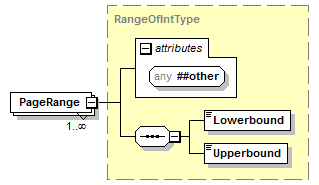

element OverridesType/Override/Pages/PageRange
diagram PwgSmRev1-185_p534.png
namespace http://www.pwg.org/schemas/2012/12/sm
type RangeOfIntType
properties
minOcc 1
maxOcc unbounded
content complex
children Lowerbound Upperbound
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:element name="PageRange" type="RangeOfIntType" maxOccurs="unbounded"/>
