PwgSmRev1-185 - ImagingJobDescriptionCapabilitiesType

complexType ImagingJobDescriptionCapabilitiesType

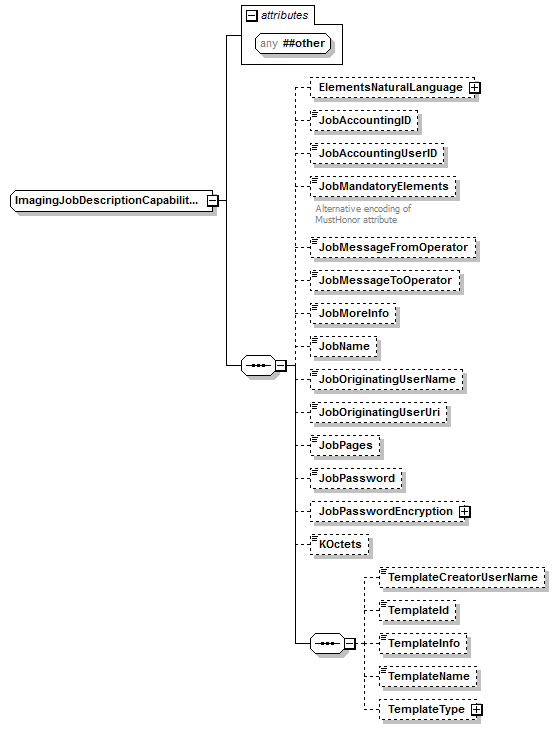

diagram
namespace	http://www.pwg.org/schemas/2012/12/sm
children	ElementsNaturalLanguage JobAccountingID JobAccountingUserID JobMandatoryElements JobMessageFromOperator JobMessageToOperator JobMoreInfo JobName JobOriginatingUserName JobOriginatingUserUri JobPages JobPassword JobPasswordEncryption KOctets TemplateCreatorUserName TemplateId TemplateInfo TemplateName TemplateType
used by	element  ImagingJobDescriptionCapabilities complexTypes  CopyJobDescriptionCapabilitiesType EmailInJobDescriptionCapabilitiesType EmailOutDocumentDescriptionCapabilitiesType EmailOutJobDescriptionCapabilitiesType FaxInJobDescriptionCapabilitiesType FaxOutJobDescriptionCapabilitiesType PrintJobDescriptionCapabilitiesType ScanJobDescriptionCapabilitiesType TransformJobDescriptionCapabilitiesType
attributes	Name   Type   Use   Default   Fixed   Annotation
source	<xs:complexType name="ImagingJobDescriptionCapabilitiesType">   <xs:sequence>     <xs:element name="ElementsNaturalLanguage" minOccurs="0">       <xs:complexType>         <xs:sequence>           <xs:element name="AllowedValue" type="NaturalLanguageType" maxOccurs="unbounded"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="JobAccountingID" type="xs:boolean" minOccurs="0"/>     <xs:element name="JobAccountingUserID" type="xs:boolean" minOccurs="0"/>     <xs:element name="JobMandatoryElements" type="xs:boolean" minOccurs="0">       <xs:annotation>         <xs:documentation>Alternative encoding of MustHonor attribute</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="JobMessageFromOperator" type="xs:boolean" minOccurs="0"/>     <xs:element name="JobMessageToOperator" type="xs:boolean" minOccurs="0"/>     <xs:element name="JobMoreInfo" type="xs:boolean" minOccurs="0"/>     <xs:element name="JobName" type="xs:boolean" minOccurs="0"/>     <xs:element name="JobOriginatingUserName" type="xs:boolean" minOccurs="0"/>     <xs:element name="JobOriginatingUserUri" type="xs:boolean" minOccurs="0"/>     <xs:element name="JobPages" type="xs:boolean" minOccurs="0"/>     <xs:element name="JobPassword" type="xs:int" minOccurs="0"/>     <xs:element name="JobPasswordEncryption" minOccurs="0">       <xs:complexType>         <xs:sequence>           <xs:element name="AllowedValue" type="JobPasswordEncryptionType" maxOccurs="unbounded"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="KOctets" type="xs:boolean" minOccurs="0"/>     <xs:sequence>       <xs:element name="TemplateCreatorUserName" type="xs:boolean" minOccurs="0"/>       <xs:element name="TemplateId" type="xs:boolean" minOccurs="0"/>       <xs:element name="TemplateInfo" type="xs:boolean" minOccurs="0"/>       <xs:element name="TemplateName" type="xs:boolean" minOccurs="0"/>       <xs:element name="TemplateType" minOccurs="0">         <xs:complexType>           <xs:sequence>             <xs:element name="AllowedValue" type="TemplateTypeType" maxOccurs="unbounded"/>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:sequence>   <xs:anyAttribute namespace="##other" processContents="lax"/>   <!-- ImagingJobDescription - group --> </xs:complexType>

element ImagingJobDescriptionCapabilitiesType/ElementsNaturalLanguage

diagram
namespace	http://www.pwg.org/schemas/2012/12/sm
properties	minOcc  0 maxOcc  1 content  complex
children	AllowedValue
used by	complexTypes  ActivateServiceRequestType AddFaxOutHardcopyDocumentRequestType CancelCurrentJobRequestType CancelDocumentRequestType CancelJobRequestType CancelJobsRequestType CancelMyJobsRequestType CancelSubscriptionRequestType CreateCopyJobRequestType CreateFaxOutJobRequestType CreateJobSubscriptionsRequestType CreatePrintJobRequestType CreateScanJobRequestType CreateServiceSubscriptionsRequestType CreateTransformJobRequestType DeactivateServiceRequestType DeleteServiceRequestType DisableServiceRequestType EnableServiceRequestType FetchPrintDocumentResponseType FetchPrintJobResponseType GetActiveCopyJobsResponseType GetActiveFaxInJobsResponseType GetActiveFaxOutJobsResponseType GetActivePrintJobsResponseType GetActiveScanJobsResponseType GetActiveTransformJobsResponseType GetCopyJobElementsResponseType GetCopyJobHistoryResponseType GetCopyServiceElementsResponseType GetFaxInDocumentElementsResponseType GetFaxInDocumentsResponseType GetFaxInJobElementsResponseType GetFaxInJobHistoryResponseType GetFaxInServiceElementsResponseType GetFaxOutDocumentElementsResponseType GetFaxOutDocumentsResponseType GetFaxOutJobElementsResponseType GetFaxOutJobHistoryResponseType GetFaxOutServiceElementsResponseType GetPrintDocumentElementsResponseType GetPrintDocumentsResponseType GetPrintJobElementsResponseType GetPrintJobHistoryResponseType GetPrintJobsResponseType GetPrintServiceElementsResponseType GetResourceElementsResponseType GetResourceServiceElementsResponseType GetScanDocumentElementsResponseType GetScanJobElementsResponseType GetScanJobHistoryResponseType GetScanServiceElementsResponseType GetSecurityAttributesResponseType GetSubscriptionElementsRequestType GetSubscriptionsRequestType GetSystemElementsResponseType GetTransformDocumentElementsResponseType GetTransformDocumentsResponseType GetTransformJobElementsResponseType GetTransformJobHistoryResponseType GetTransformServiceElementsResponseType HoldJobRequestType HoldNewJobsRequestType IdentifyPrinterRequestType IdentifyTransformerRequestType ImagingJobDescriptionSetType ImagingJobDescriptionType ListAllServicesResponseType ListResourcesRequestType ListResourcesResponseType PauseServiceAfterCurrentJobRequestType PauseServiceRequestType PrintJobRequestType PrintUriRequestType PromoteJobRequestType PurgeJobsRequestType ReleaseJobRequestType ReleaseNewJobsRequestType RenewSubscriptionRequestType ReplaceResourceRequestType RequestSecurityAttributesResponseType ResourceDescriptionType ResourceSummaryType RestartAllServiceRequestType RestartServiceRequestControlType RestartServiceRequestType RestartSystemServiceRequestType ResubmitCopyJobRequestType ResubmitFaxOutJobRequestType ResubmitPrintJobRequestType ResubmitScanJobRequestType ResubmitTransformJobRequestType ResumeJobRequestType ResumeServiceRequestType RetrieveResourceResponseType SendFaxOutDocumentRequestType SendFaxOutUriRequestType SendPrintDocumentRequestType SendPrintUriRequestType SendTransformDocumentRequestType SendTransformUriRequestType SetCopyJobElementsRequestType SetCopyServiceElementsRequestType SetFaxInDocumentElementsRequestType SetFaxInJobElementsRequestType SetFaxInServiceElementsRequestType SetFaxOutDocumentElementsRequestType SetFaxOutJobElementsRequestType SetFaxOutServiceElementsRequestType SetPrintDocumentElementsRequestType SetPrintJobElementsRequestType SetPrintServiceElementsRequestType SetResourceElementsRequestType SetResourceServiceElementsRequestType SetScanDocumentElementsRequestType SetScanJobElementsRequestType SetScanServiceElementsRequestType SetSystemElementsRequestType SetTransformDocumentElementsRequestType SetTransformJobElementsRequestType SetTransformServiceElementsRequestType ShutdownAllServicesRequestType ShutdownServiceRequestControlType ShutdownServiceRequestType StartupAllServiceRequestType StartupServiceRequestType StoreResourceRequestType SuspendCurrentJobRequestType ValidateCopyJobTicketRequestType ValidateFaxInDocumentTicketRequestType ValidateFaxInJobTicketRequestType ValidateFaxOutDocumentTicketRequestType ValidateFaxOutJobTicketRequestType ValidatePrintDocumentTicketRequestType ValidatePrintJobTicketRequestType ValidateScanDocumentTicketRequestType ValidateScanJobTicketRequestType ValidateTransformDocumentTicketRequestType ValidateTransformJobTicketRequestType
source	<xs:element name="ElementsNaturalLanguage" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="AllowedValue" type="NaturalLanguageType" maxOccurs="unbounded"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ImagingJobDescriptionCapabilitiesType/ElementsNaturalLanguage/AllowedValue

diagram
namespace	http://www.pwg.org/schemas/2012/12/sm
type	NaturalLanguageType
properties	minOcc  1 maxOcc  unbounded content  simple
source	<xs:element name="AllowedValue" type="NaturalLanguageType" maxOccurs="unbounded"/>

element ImagingJobDescriptionCapabilitiesType/JobAccountingID

diagram
namespace	http://www.pwg.org/schemas/2012/12/sm
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
used by	complexTypes  ImagingJobDescriptionSetType ImagingJobDescriptionType
source	<xs:element name="JobAccountingID" type="xs:boolean" minOccurs="0"/>

element ImagingJobDescriptionCapabilitiesType/JobAccountingUserID

diagram
namespace	http://www.pwg.org/schemas/2012/12/sm
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
used by	complexTypes  ImagingJobDescriptionSetType ImagingJobDescriptionType
source	<xs:element name="JobAccountingUserID" type="xs:boolean" minOccurs="0"/>

element ImagingJobDescriptionCapabilitiesType/JobMandatoryElements

diagram
namespace	http://www.pwg.org/schemas/2012/12/sm
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
used by	complexTypes  ImagingJobDescriptionSetType ImagingJobProcessingType
annotation	documentation Alternative encoding of MustHonor attribute
source	<xs:element name="JobMandatoryElements" type="xs:boolean" minOccurs="0">   <xs:annotation>     <xs:documentation>Alternative encoding of MustHonor attribute</xs:documentation>   </xs:annotation> </xs:element>

element ImagingJobDescriptionCapabilitiesType/JobMessageFromOperator

diagram
namespace	http://www.pwg.org/schemas/2012/12/sm
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
used by	complexTypes  ImagingJobDescriptionSetType ImagingJobDescriptionType
source	<xs:element name="JobMessageFromOperator" type="xs:boolean" minOccurs="0"/>

element ImagingJobDescriptionCapabilitiesType/JobMessageToOperator

diagram
namespace	http://www.pwg.org/schemas/2012/12/sm
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
used by	complexTypes  ImagingJobDescriptionSetType ImagingJobDescriptionType
source	<xs:element name="JobMessageToOperator" type="xs:boolean" minOccurs="0"/>

element ImagingJobDescriptionCapabilitiesType/JobMoreInfo

diagram
namespace	http://www.pwg.org/schemas/2012/12/sm
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
used by	complexTypes  ImagingJobDescriptionSetType ImagingJobDescriptionType
source	<xs:element name="JobMoreInfo" type="xs:boolean" minOccurs="0"/>

element ImagingJobDescriptionCapabilitiesType/JobName

diagram
namespace	http://www.pwg.org/schemas/2012/12/sm
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
used by	complexTypes  AcknowledgePrintJobRequestType CopyJobSummaryType FaxInJobSummaryType FaxOutJobSummaryType FetchableJobsType GetFaxInDocumentsResponseType GetFaxOutDocumentsResponseType GetPrintDocumentsResponseType GetScanDocumentsResponseType GetTransformDocumentsResponseType ImagingJobDescriptionSetType ImagingJobDescriptionType PrintJobSummaryType ScanJobSummaryType TransformJobSummaryType
source	<xs:element name="JobName" type="xs:boolean" minOccurs="0"/>

element ImagingJobDescriptionCapabilitiesType/JobOriginatingUserName

diagram
namespace	http://www.pwg.org/schemas/2012/12/sm
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
used by	complexTypes  AcknowledgePrintJobRequestType CopyJobSummaryType FaxInJobSummaryType FaxOutJobSummaryType FetchableJobsType ImagingJobDescriptionSetType ImagingJobDescriptionType ImagingJobStatusType PrintJobSummaryType ScanJobSummaryType TransformJobSummaryType
source	<xs:element name="JobOriginatingUserName" type="xs:boolean" minOccurs="0"/>

element ImagingJobDescriptionCapabilitiesType/JobOriginatingUserUri

diagram
namespace	http://www.pwg.org/schemas/2012/12/sm
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
used by	complexTypes  ImagingJobDescriptionSetType ImagingJobDescriptionType ImagingJobStatusType
source	<xs:element name="JobOriginatingUserUri" type="xs:boolean" minOccurs="0"/>

element ImagingJobDescriptionCapabilitiesType/JobPages

diagram
namespace	http://www.pwg.org/schemas/2012/12/sm
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
used by	complexType  ImagingJobDescriptionType
source	<xs:element name="JobPages" type="xs:boolean" minOccurs="0"/>

element ImagingJobDescriptionCapabilitiesType/JobPassword

diagram
namespace	http://www.pwg.org/schemas/2012/12/sm
type	xs:int
properties	minOcc  0 maxOcc  1 content  simple
used by	complexTypes  CreateCopyJobRequestType CreateFaxOutJobRequestType CreatePrintJobRequestType CreateScanJobRequestType CreateTransformJobRequestType FetchPrintJobResponseType ImagingJobDescriptionSetType PrintJobRequestType PrintUriRequestType ValidateCopyJobTicketRequestType ValidateFaxOutJobTicketRequestType ValidatePrintJobTicketRequestType ValidateScanJobTicketRequestType ValidateTransformJobTicketRequestType
source	<xs:element name="JobPassword" type="xs:int" minOccurs="0"/>

element ImagingJobDescriptionCapabilitiesType/JobPasswordEncryption

diagram
namespace	http://www.pwg.org/schemas/2012/12/sm
properties	minOcc  0 maxOcc  1 content  complex
children	AllowedValue
used by	complexTypes  CreateCopyJobRequestType CreateFaxOutJobRequestType CreatePrintJobRequestType CreateScanJobRequestType CreateTransformJobRequestType FetchPrintJobResponseType ImagingJobDescriptionSetType PrintJobRequestType PrintUriRequestType ValidateCopyJobTicketRequestType ValidateFaxOutJobTicketRequestType ValidatePrintJobTicketRequestType ValidateScanJobTicketRequestType ValidateTransformJobTicketRequestType
source	<xs:element name="JobPasswordEncryption" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="AllowedValue" type="JobPasswordEncryptionType" maxOccurs="unbounded"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ImagingJobDescriptionCapabilitiesType/JobPasswordEncryption/AllowedValue

diagram
namespace	http://www.pwg.org/schemas/2012/12/sm
type	JobPasswordEncryptionType
properties	minOcc  1 maxOcc  unbounded content  simple
source	<xs:element name="AllowedValue" type="JobPasswordEncryptionType" maxOccurs="unbounded"/>

element ImagingJobDescriptionCapabilitiesType/KOctets

diagram
namespace	http://www.pwg.org/schemas/2012/12/sm
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
used by	element  ServiceSpecificDocumentDescription complexTypes  AvailablePrintJobSummaryType ImagingJobDescriptionSetType ImagingJobDescriptionType PrintDocumentDescriptionType TransformDocumentDescriptionType
source	<xs:element name="KOctets" type="xs:boolean" minOccurs="0"/>

element ImagingJobDescriptionCapabilitiesType/TemplateCreatorUserName

diagram
namespace	http://www.pwg.org/schemas/2012/12/sm
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
used by	complexTypes  ImagingJobDescriptionSetType ImagingJobDescriptionType
source	<xs:element name="TemplateCreatorUserName" type="xs:boolean" minOccurs="0"/>

element ImagingJobDescriptionCapabilitiesType/TemplateId

diagram
namespace	http://www.pwg.org/schemas/2012/12/sm
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
used by	complexTypes  ImagingJobDescriptionSetType ImagingJobDescriptionType
source	<xs:element name="TemplateId" type="xs:boolean" minOccurs="0"/>

element ImagingJobDescriptionCapabilitiesType/TemplateInfo

diagram
namespace	http://www.pwg.org/schemas/2012/12/sm
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
used by	complexTypes  ImagingJobDescriptionSetType ImagingJobDescriptionType
source	<xs:element name="TemplateInfo" type="xs:boolean" minOccurs="0"/>

element ImagingJobDescriptionCapabilitiesType/TemplateName

diagram
namespace	http://www.pwg.org/schemas/2012/12/sm
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
used by	complexTypes  ImagingJobDescriptionSetType ImagingJobDescriptionType
source	<xs:element name="TemplateName" type="xs:boolean" minOccurs="0"/>

element ImagingJobDescriptionCapabilitiesType/TemplateType

diagram
namespace	http://www.pwg.org/schemas/2012/12/sm
properties	minOcc  0 maxOcc  1 content  complex
children	AllowedValue
used by	complexTypes  ImagingJobDescriptionSetType ImagingJobDescriptionType
source	<xs:element name="TemplateType" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="AllowedValue" type="TemplateTypeType" maxOccurs="unbounded"/>     </xs:sequence>   </xs:complexType> </xs:element>

element ImagingJobDescriptionCapabilitiesType/TemplateType/AllowedValue

diagram
namespace	http://www.pwg.org/schemas/2012/12/sm
type	TemplateTypeType
properties	minOcc  1 maxOcc  unbounded content  simple
source	<xs:element name="AllowedValue" type="TemplateTypeType" maxOccurs="unbounded"/>
