PwgSmRev1-185 - AcknowledgePrintJobRequestType

complexType AcknowledgePrintJobRequestType

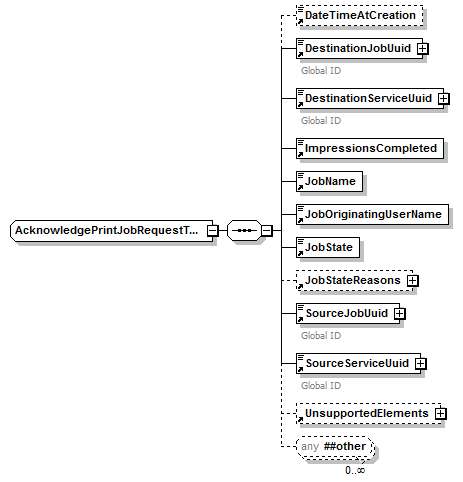

diagram

namespace

http://www.pwg.org/schemas/2012/12/sm

children

DateTimeAtCreation DestinationJobUuid DestinationServiceUuid ImpressionsCompleted JobName JobOriginatingUserName JobState JobStateReasons SourceJobUuid SourceServiceUuid UnsupportedElements

used by

element

AcknowledgePrintJobRequest

source

<xs:complexType name="AcknowledgePrintJobRequestType">
<xs:sequence>
    <xs:element ref="DateTimeAtCreation" minOccurs="0"/>
    <xs:element ref="DestinationJobUuid"/>
    <xs:element ref="DestinationServiceUuid"/>
    <xs:element ref="ImpressionsCompleted"/>
    <xs:element ref="JobName"/>
    <xs:element ref="JobOriginatingUserName"/>
    <xs:element ref="JobState"/>
    <xs:element ref="JobStateReasons" minOccurs="0"/>
    <xs:element ref="SourceJobUuid"/>
    <xs:element ref="SourceServiceUuid"/>
    <xs:element ref="UnsupportedElements" minOccurs="0"/>
    <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
</xs:sequence>
</xs:complexType>
