PwgSmRev1-185 - CreateJobSubscriptionsRequestType

complexType CreateJobSubscriptionsRequestType

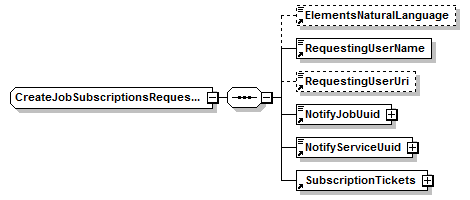

diagram PwgSmRev1-185_p3622.png
namespace http://www.pwg.org/schemas/2012/12/sm
children ElementsNaturalLanguage RequestingUserName RequestingUserUri NotifyJobUuid NotifyServiceUuid SubscriptionTickets
used by
element CreateJobSubscriptionsRequest
source <xs:complexType name="CreateJobSubscriptionsRequestType">

<xs:sequence>

<xs:element ref="ElementsNaturalLanguage" minOccurs="0"/>

<xs:element ref="RequestingUserName"/>

<xs:element ref="RequestingUserUri" minOccurs="0"/>

<xs:element ref="NotifyJobUuid"/>

<xs:element ref="NotifyServiceUuid"/>

<xs:element ref="SubscriptionTickets"/>

</xs:sequence>
</xs:complexType>
