PwgSmRev1-185 - MediaColSupportedType

complexType MediaColSupportedType

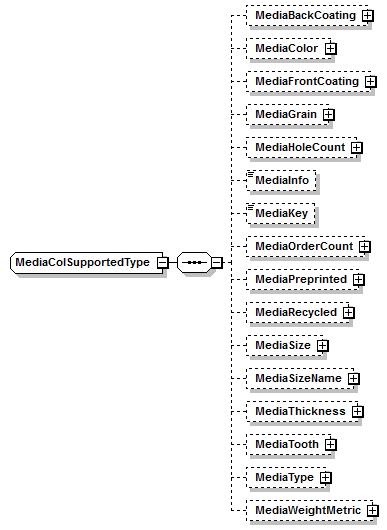

diagram PwgSmRev1-185_p461.png
namespace http://www.pwg.org/schemas/2012/12/sm
children MediaBackCoating MediaColor MediaFrontCoating MediaGrain MediaHoleCount MediaInfo MediaKey MediaOrderCount MediaPreprinted MediaRecycled MediaSize MediaSizeName MediaThickness MediaTooth MediaType MediaWeightMetric
source <xs:complexType name="MediaColSupportedType">
  <xs:sequence>
    <xs:element name="MediaBackCoating" minOccurs="0">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="AllowedValue" maxOccurs="unbounded">
            <xs:simpleType>
              <xs:union memberTypes="MediaCoatingWKV MediaColorExtensionPattern"/>
            </xs:simpleType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="MediaColor" minOccurs="0">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="AllowedValue" maxOccurs="unbounded">
            <xs:simpleType>
              <xs:union memberTypes="MediaColorWKV MediaColorExtensionPattern"/>
            </xs:simpleType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="MediaFrontCoating" minOccurs="0">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="AllowedValue" maxOccurs="unbounded">
            <xs:simpleType>
              <xs:union memberTypes="MediaCoatingWKV MediaNsExtensionPattern"/>
            </xs:simpleType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="MediaGrain" minOccurs="0">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="AllowedValue" maxOccurs="unbounded">
            <xs:simpleType>
              <xs:union memberTypes="MediaGrainWKV MediaNsExtensionPattern"/>
            </xs:simpleType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="MediaHoleCount" type="pwg:RangeOfIntType" minOccurs="0"/>
    <xs:element name="MediaInfo" type="xs:boolean" minOccurs="0"/>
    <xs:element name="MediaKey" type="xs:boolean" minOccurs="0"/>
    <xs:element name="MediaOrderCount" type="pwg:RangeOfIntType" minOccurs="0"/>
    <xs:element name="MediaPreprinted" minOccurs="0">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="AllowedValue" maxOccurs="unbounded">
            <xs:simpleType>
              <xs:union memberTypes="MediaPreprintedWKV MediaNsExtensionPattern"/>
            </xs:simpleType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="MediaRecycled" minOccurs="0">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="AllowedValue" maxOccurs="unbounded">
            <xs:simpleType>
              <xs:union memberTypes="MediaRecycledWKV MediaNsExtensionPattern"/>
            </xs:simpleType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="MediaSize" minOccurs="0">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="XDimension" type="pwg:RangeOfIntType"/>
          <xs:element name="YDimension" type="pwg:RangeOfIntType"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="MediaSizeName" minOccurs="0">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="AllowedValue" maxOccurs="unbounded">
            <xs:simpleType>
              <xs:union memberTypes="MediaSizeNameWKV MediaSizeNameExtensionPattern"/>
            </xs:simpleType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="MediaThickness" type="pwg:RangeOfIntType" minOccurs="0"/>
    <xs:element name="MediaTooth" minOccurs="0">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="AllowedValue" maxOccurs="unbounded">
            <xs:simpleType>
              <xs:union memberTypes="MediaToothWKV MediaNsExtensionPattern"/>
            </xs:simpleType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="MediaType" minOccurs="0">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="AllowedValue" maxOccurs="unbounded">
            <xs:simpleType>
              <xs:union memberTypes="MediaTypeWKV MediaTypeExtensionPattern"/>
            </xs:simpleType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="MediaWeightMetric" type="pwg:RangeOfIntType" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element MediaColSupportedType/MediaBackCoating
diagram PwgSmRev1-185_p462.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
complexType MediaColType
source <xs:element name="MediaBackCoating" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="AllowedValue" maxOccurs="unbounded">
        <xs:simpleType>
          <xs:union memberTypes="MediaCoatingWKV MediaColorExtensionPattern"/>
        </xs:simpleType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element MediaColSupportedType/MediaBackCoating/AllowedValue
diagram PwgSmRev1-185_p463.png
namespace http://www.pwg.org/schemas/2012/12/sm
type union of (MediaCoatingWKV, MediaColorExtensionPattern)
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">
  <xs:simpleType>
    <xs:union memberTypes="MediaCoatingWKV MediaColorExtensionPattern"/>
  </xs:simpleType>
</xs:element>

element MediaColSupportedType/MediaColor
diagram PwgSmRev1-185_p464.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
complexType MediaColType
source <xs:element name="MediaColor" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="AllowedValue" maxOccurs="unbounded">
        <xs:simpleType>
          <xs:union memberTypes="MediaColorWKV MediaColorExtensionPattern"/>
        </xs:simpleType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element MediaColSupportedType/MediaColor/AllowedValue
diagram PwgSmRev1-185_p465.png
namespace http://www.pwg.org/schemas/2012/12/sm
type union of (MediaColorWKV, MediaColorExtensionPattern)
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">
  <xs:simpleType>
    <xs:union memberTypes="MediaColorWKV MediaColorExtensionPattern"/>
  </xs:simpleType>
</xs:element>

element MediaColSupportedType/MediaFrontCoating
diagram PwgSmRev1-185_p466.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
complexType MediaColType
source <xs:element name="MediaFrontCoating" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="AllowedValue" maxOccurs="unbounded">
        <xs:simpleType>
          <xs:union memberTypes="MediaCoatingWKV MediaNsExtensionPattern"/>
        </xs:simpleType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element MediaColSupportedType/MediaFrontCoating/AllowedValue
diagram PwgSmRev1-185_p467.png
namespace http://www.pwg.org/schemas/2012/12/sm
type union of (MediaCoatingWKV, MediaNsExtensionPattern)
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">
  <xs:simpleType>
    <xs:union memberTypes="MediaCoatingWKV MediaNsExtensionPattern"/>
  </xs:simpleType>
</xs:element>

element MediaColSupportedType/MediaGrain
diagram PwgSmRev1-185_p468.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
complexType MediaColType
source <xs:element name="MediaGrain" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="AllowedValue" maxOccurs="unbounded">
        <xs:simpleType>
          <xs:union memberTypes="MediaGrainWKV MediaNsExtensionPattern"/>
        </xs:simpleType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element MediaColSupportedType/MediaGrain/AllowedValue
diagram PwgSmRev1-185_p469.png
namespace http://www.pwg.org/schemas/2012/12/sm
type union of (MediaGrainWKV, MediaNsExtensionPattern)
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">
  <xs:simpleType>
    <xs:union memberTypes="MediaGrainWKV MediaNsExtensionPattern"/>
  </xs:simpleType>
</xs:element>

element MediaColSupportedType/MediaHoleCount
diagram PwgSmRev1-185_p470.png
namespace http://www.pwg.org/schemas/2012/12/sm
type RangeOfIntType
properties
minOcc 0
maxOcc 1
content complex
children Lowerbound Upperbound
used by
complexType MediaColType
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:element name="MediaHoleCount" type="pwg:RangeOfIntType" minOccurs="0"/>

element MediaColSupportedType/MediaInfo
diagram PwgSmRev1-185_p471.png
namespace http://www.pwg.org/schemas/2012/12/sm
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
used by
complexType MediaColType
source <xs:element name="MediaInfo" type="xs:boolean" minOccurs="0"/>

element MediaColSupportedType/MediaKey
diagram PwgSmRev1-185_p472.png
namespace http://www.pwg.org/schemas/2012/12/sm
type xs:boolean
properties
minOcc 0
maxOcc 1
content simple
used by
complexType MediaColType
source <xs:element name="MediaKey" type="xs:boolean" minOccurs="0"/>

element MediaColSupportedType/MediaOrderCount
diagram PwgSmRev1-185_p473.png
namespace http://www.pwg.org/schemas/2012/12/sm
type RangeOfIntType
properties
minOcc 0
maxOcc 1
content complex
children Lowerbound Upperbound
used by
complexType MediaColType
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:element name="MediaOrderCount" type="pwg:RangeOfIntType" minOccurs="0"/>

element MediaColSupportedType/MediaPreprinted
diagram PwgSmRev1-185_p474.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
complexType MediaColType
source <xs:element name="MediaPreprinted" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="AllowedValue" maxOccurs="unbounded">
        <xs:simpleType>
          <xs:union memberTypes="MediaPreprintedWKV MediaNsExtensionPattern"/>
        </xs:simpleType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element MediaColSupportedType/MediaPreprinted/AllowedValue
diagram PwgSmRev1-185_p475.png
namespace http://www.pwg.org/schemas/2012/12/sm
type union of (MediaPreprintedWKV, MediaNsExtensionPattern)
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">
  <xs:simpleType>
    <xs:union memberTypes="MediaPreprintedWKV MediaNsExtensionPattern"/>
  </xs:simpleType>
</xs:element>

element MediaColSupportedType/MediaRecycled
diagram PwgSmRev1-185_p476.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
complexType MediaColType
source <xs:element name="MediaRecycled" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="AllowedValue" maxOccurs="unbounded">
        <xs:simpleType>
          <xs:union memberTypes="MediaRecycledWKV MediaNsExtensionPattern"/>
        </xs:simpleType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element MediaColSupportedType/MediaRecycled/AllowedValue
diagram PwgSmRev1-185_p477.png
namespace http://www.pwg.org/schemas/2012/12/sm
type union of (MediaRecycledWKV, MediaNsExtensionPattern)
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">
  <xs:simpleType>
    <xs:union memberTypes="MediaRecycledWKV MediaNsExtensionPattern"/>
  </xs:simpleType>
</xs:element>

element MediaColSupportedType/MediaSize
diagram PwgSmRev1-185_p478.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children XDimension YDimension
used by
complexType MediaColType
source <xs:element name="MediaSize" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="XDimension" type="pwg:RangeOfIntType"/>
      <xs:element name="YDimension" type="pwg:RangeOfIntType"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element MediaColSupportedType/MediaSize/XDimension
diagram PwgSmRev1-185_p479.png
namespace http://www.pwg.org/schemas/2012/12/sm
type RangeOfIntType
properties
content complex
children Lowerbound Upperbound
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:element name="XDimension" type="pwg:RangeOfIntType"/>

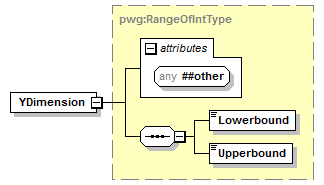

element MediaColSupportedType/MediaSize/YDimension
diagram PwgSmRev1-185_p480.png
namespace http://www.pwg.org/schemas/2012/12/sm
type RangeOfIntType
properties
content complex
children Lowerbound Upperbound
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:element name="YDimension" type="pwg:RangeOfIntType"/>

element MediaColSupportedType/MediaSizeName
diagram PwgSmRev1-185_p481.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
element MediaBox
complexType MediaColType
source <xs:element name="MediaSizeName" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="AllowedValue" maxOccurs="unbounded">
        <xs:simpleType>
          <xs:union memberTypes="MediaSizeNameWKV MediaSizeNameExtensionPattern"/>
        </xs:simpleType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element MediaColSupportedType/MediaSizeName/AllowedValue
diagram PwgSmRev1-185_p482.png
namespace http://www.pwg.org/schemas/2012/12/sm
type union of (MediaSizeNameWKV, MediaSizeNameExtensionPattern)
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">
  <xs:simpleType>
    <xs:union memberTypes="MediaSizeNameWKV MediaSizeNameExtensionPattern"/>
  </xs:simpleType>
</xs:element>

element MediaColSupportedType/MediaThickness
diagram PwgSmRev1-185_p483.png
namespace http://www.pwg.org/schemas/2012/12/sm
type RangeOfIntType
properties
minOcc 0
maxOcc 1
content complex
children Lowerbound Upperbound
used by
complexType MediaColType
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:element name="MediaThickness" type="pwg:RangeOfIntType" minOccurs="0"/>

element MediaColSupportedType/MediaTooth
diagram PwgSmRev1-185_p484.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
complexType MediaColType
source <xs:element name="MediaTooth" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="AllowedValue" maxOccurs="unbounded">
        <xs:simpleType>
          <xs:union memberTypes="MediaToothWKV MediaNsExtensionPattern"/>
        </xs:simpleType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element MediaColSupportedType/MediaTooth/AllowedValue
diagram PwgSmRev1-185_p485.png
namespace http://www.pwg.org/schemas/2012/12/sm
type union of (MediaToothWKV, MediaNsExtensionPattern)
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">
  <xs:simpleType>
    <xs:union memberTypes="MediaToothWKV MediaNsExtensionPattern"/>
  </xs:simpleType>
</xs:element>

element MediaColSupportedType/MediaType
diagram PwgSmRev1-185_p486.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
elements CopyOutput ServiceSpecificDocumentProcessing
complexTypes AvailablePrintJobSummaryType CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType MediaColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
source <xs:element name="MediaType" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="AllowedValue" maxOccurs="unbounded">
        <xs:simpleType>
          <xs:union memberTypes="MediaTypeWKV MediaTypeExtensionPattern"/>
        </xs:simpleType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element MediaColSupportedType/MediaType/AllowedValue
diagram PwgSmRev1-185_p487.png
namespace http://www.pwg.org/schemas/2012/12/sm
type union of (MediaTypeWKV, MediaTypeExtensionPattern)
properties
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" maxOccurs="unbounded">
  <xs:simpleType>
    <xs:union memberTypes="MediaTypeWKV MediaTypeExtensionPattern"/>
  </xs:simpleType>
</xs:element>

element MediaColSupportedType/MediaWeightMetric
diagram PwgSmRev1-185_p488.png
namespace http://www.pwg.org/schemas/2012/12/sm
type RangeOfIntType
properties
minOcc 0
maxOcc 1
content complex
children Lowerbound Upperbound
used by
complexType MediaColType
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:element name="MediaWeightMetric" type="pwg:RangeOfIntType" minOccurs="0"/>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
