PwgSmRev1-185 - MediaColDatabase

element MediaColDatabase
diagram PwgSmRev1-185_p1137.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
content complex
children MediaCol
used by
complexTypes CopyOutputDocumentProcessingCapabilitiesType PrintDocumentProcessingCapabilitiesType
source <xs:element name="MediaColDatabase">

<xs:complexType>

<xs:sequence>

<xs:element name="MediaCol" maxOccurs="unbounded">

<xs:complexType>

<xs:complexContent>

<xs:extension base="MediaColType">

<xs:sequence>

<xs:element name="MediaSourceProperties">

<xs:complexType>

<xs:sequence>

<xs:element name="MediaSourceFeedDirection" type="FeedOrientationWKV"/>

<xs:element name="MediaSourceFeedOrientation" type="MediaSourceFeedOrientationType"/>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:extension>

</xs:complexContent>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>
</xs:element>

element MediaColDatabase/MediaCol
diagram PwgSmRev1-185_p1138.png
namespace http://www.pwg.org/schemas/2012/12/sm
type extension of MediaColType
properties
minOcc 1
maxOcc unbounded
content complex
children MediaBackCoating MediaBottomMargin MediaColor MediaFrontCoating MediaGrain MediaHoleCount MediaInfo MediaKey MediaLeftMargin MediaOrderCount MediaPreprinted MediaRecycled MediaRightMargin MediaSize MediaSizeName MediaSource MediaThickness MediaTooth MediaTopMargin MediaType MediaWeightMetric MediaSourceProperties
used by
elements CopyOutput MediaColActual MediaColReady ServiceSpecificDocumentProcessing
complexTypes AvailablePrintJobSummaryType CoverColType InsertSheetType JobAccountingSheetsType JobErrorSheetType JobSheetsColType PrintDocumentProcessingDefaultType PrintDocumentProcessingType ProofPrintType SeparatorSheetsType
attributes
Name  Type  Use  Default  Fixed  Annotation
MustHonor  xs:boolean
source <xs:element name="MediaCol" maxOccurs="unbounded">

<xs:complexType>

<xs:complexContent>

<xs:extension base="MediaColType">

<xs:sequence>

<xs:element name="MediaSourceProperties">

<xs:complexType>

<xs:sequence>

<xs:element name="MediaSourceFeedDirection" type="FeedOrientationWKV"/>

<xs:element name="MediaSourceFeedOrientation" type="MediaSourceFeedOrientationType"/>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

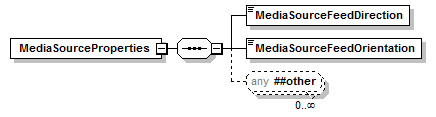

element MediaColDatabase/MediaCol/MediaSourceProperties
diagram PwgSmRev1-185_p1139.png
namespace http://www.pwg.org/schemas/2012/12/sm
properties
content complex
children MediaSourceFeedDirection MediaSourceFeedOrientation
source <xs:element name="MediaSourceProperties">

<xs:complexType>

<xs:sequence>

<xs:element name="MediaSourceFeedDirection" type="FeedOrientationWKV"/>

<xs:element name="MediaSourceFeedOrientation" type="MediaSourceFeedOrientationType"/>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element MediaColDatabase/MediaCol/MediaSourceProperties/MediaSourceFeedDirection
diagram PwgSmRev1-185_p1140.png
namespace http://www.pwg.org/schemas/2012/12/sm
type FeedOrientationWKV
properties
content simple
facets
Kind Value Annotation
maxLength 255
enumeration LongEdgeFirst
enumeration ShortEdgeFirst
source <xs:element name="MediaSourceFeedDirection" type="FeedOrientationWKV"/>

element MediaColDatabase/MediaCol/MediaSourceProperties/MediaSourceFeedOrientation
diagram PwgSmRev1-185_p1141.png
namespace http://www.pwg.org/schemas/2012/12/sm
type MediaSourceFeedOrientationType
properties
content simple
source <xs:element name="MediaSourceFeedOrientation" type="MediaSourceFeedOrientationType"/>
