PwgPrintJobTicket_v1.0 - ObjectDeviceReferenceType

complexType ObjectDeviceReferenceType

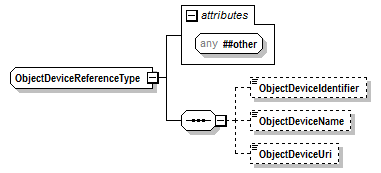

diagram PwgPrintJobTicket_v1.0_p511.png
namespace http://www.pwg.org/schemas/2012/8/sm
children ObjectDeviceIdentifier ObjectDeviceName ObjectDeviceUri
used by
elements ObjectDeviceReferencesType/ObjectDeviceReference ObjectDeviceSupportedType/ObjectDeviceReference
attributes
Name  Type  Use  Default  Fixed  annotation
source <xs:complexType name="ObjectDeviceReferenceType">
  <xs:sequence>
    <xs:element name="ObjectDeviceIdentifier" type="ObjectIdentifier32Type" minOccurs="0"/>
    <xs:element name="ObjectDeviceName" type="ObjectStringLongType" minOccurs="0"/>
    <xs:element name="ObjectDeviceUri" type="xs:anyURI" minOccurs="0"/>
  </xs:sequence>
  <xs:anyAttribute namespace="##other" processContents="lax"/>
  <!-- see output-device-assigned - section 4.3.13 [RFC2911] -->
</xs:complexType>

element ObjectDeviceReferenceType/ObjectDeviceIdentifier
diagram PwgPrintJobTicket_v1.0_p512.png
namespace http://www.pwg.org/schemas/2012/8/sm
type ObjectIdentifier32Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minInclusive 1
maxInclusive 2147483647
source <xs:element name="ObjectDeviceIdentifier" type="ObjectIdentifier32Type" minOccurs="0"/>

element ObjectDeviceReferenceType/ObjectDeviceName
diagram PwgPrintJobTicket_v1.0_p513.png
namespace http://www.pwg.org/schemas/2012/8/sm
type ObjectStringLongType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 0
maxLength 255
source <xs:element name="ObjectDeviceName" type="ObjectStringLongType" minOccurs="0"/>

element ObjectDeviceReferenceType/ObjectDeviceUri
diagram PwgPrintJobTicket_v1.0_p514.png
namespace http://www.pwg.org/schemas/2012/8/sm
type xs:anyURI
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="ObjectDeviceUri" type="xs:anyURI" minOccurs="0"/>
