PwgPrintJobTicket_v1.0 - ImagingDocumentProcessingCapabilitiesType

complexType ImagingDocumentProcessingCapabilitiesType

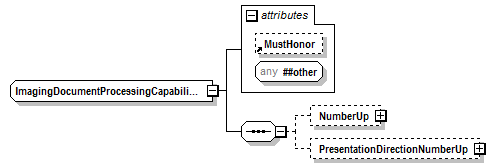

diagram PwgPrintJobTicket_v1.0_p714.png
namespace http://www.pwg.org/schemas/2012/8/sm
children NumberUp PresentationDirectionNumberUp
used by
element ImagingDocumentProcessingCapabilities
attributes
Name  Type  Use  Default  Fixed  annotation
MustHonorxs:boolean
source <xs:complexType name="ImagingDocumentProcessingCapabilitiesType">
  <xs:sequence>
    <xs:element name="NumberUp" minOccurs="0">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="AllowedValue" type="xs:int" maxOccurs="unbounded"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="PresentationDirectionNumberUp" minOccurs="0">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="AllowedValue" type="PresentationDirectionNumberUpType" maxOccurs="unbounded"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
  <xs:attribute ref="MustHonor"/>
  <xs:anyAttribute namespace="##other" processContents="lax"/>
</xs:complexType>

element ImagingDocumentProcessingCapabilitiesType/NumberUp
diagram PwgPrintJobTicket_v1.0_p715.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
complexType ImagingDocumentProcessingType
source <xs:element name="NumberUp" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="AllowedValue" type="xs:int" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element ImagingDocumentProcessingCapabilitiesType/NumberUp/AllowedValue
diagram PwgPrintJobTicket_v1.0_p716.png
namespace http://www.pwg.org/schemas/2012/8/sm
type xs:int
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" type="xs:int" maxOccurs="unbounded"/>

element ImagingDocumentProcessingCapabilitiesType/PresentationDirectionNumberUp
diagram PwgPrintJobTicket_v1.0_p717.png
namespace http://www.pwg.org/schemas/2012/8/sm
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children AllowedValue
used by
complexType ImagingDocumentProcessingType
source <xs:element name="PresentationDirectionNumberUp" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="AllowedValue" type="PresentationDirectionNumberUpType" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element ImagingDocumentProcessingCapabilitiesType/PresentationDirectionNumberUp/AllowedValue
diagram PwgPrintJobTicket_v1.0_p718.png
namespace http://www.pwg.org/schemas/2012/8/sm
type PresentationDirectionNumberUpType
properties
isRef 0
minOcc 1
maxOcc unbounded
content simple
source <xs:element name="AllowedValue" type="PresentationDirectionNumberUpType" maxOccurs="unbounded"/>
