PwgSmRev1-185 - PrintDocumentStatusType

complexType PrintDocumentStatusType

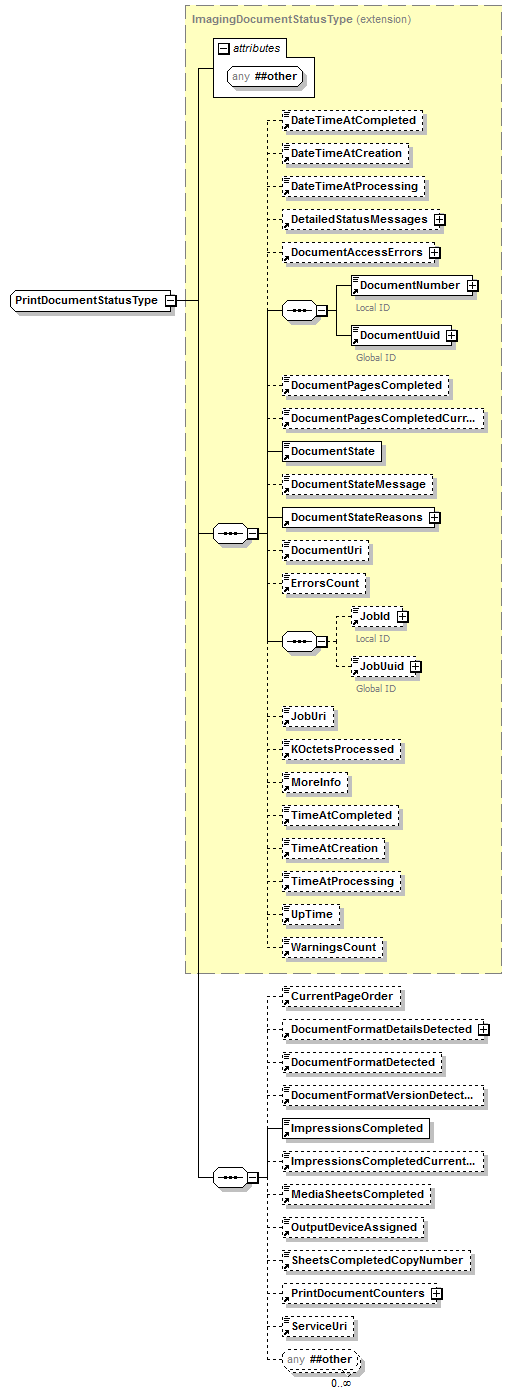

diagram PwgSmRev1-185_p1775.png
namespace http://www.pwg.org/schemas/2012/12/sm
type extension of ImagingDocumentStatusType
properties
base ImagingDocumentStatusType
children DateTimeAtCompleted DateTimeAtCreation DateTimeAtProcessing DetailedStatusMessages DocumentAccessErrors DocumentNumber DocumentUuid DocumentPagesCompleted DocumentPagesCompletedCurrentCopy DocumentState DocumentStateMessage DocumentStateReasons DocumentUri ErrorsCount JobId JobUuid JobUri KOctetsProcessed MoreInfo TimeAtCompleted TimeAtCreation TimeAtProcessing UpTime WarningsCount CurrentPageOrder DocumentFormatDetailsDetected DocumentFormatDetected DocumentFormatVersionDetected ImpressionsCompleted ImpressionsCompletedCurrentCopy MediaSheetsCompleted OutputDeviceAssigned SheetsCompletedCopyNumber PrintDocumentCounters ServiceUri
used by
element PrintDocumentStatus
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:complexType name="PrintDocumentStatusType">
  <xs:complexContent>
    <xs:extension base="ImagingDocumentStatusType">
      <xs:sequence>
        <!-- Print Document status references here -->
        <!-- Print Document counters from service counters definition -->
        <xs:element ref="CurrentPageOrder" minOccurs="0"/>
        <xs:element ref="DocumentFormatDetailsDetected" minOccurs="0"/>
        <xs:element ref="DocumentFormatDetected" minOccurs="0"/>
        <xs:element ref="DocumentFormatVersionDetected" minOccurs="0"/>
        <xs:element ref="ImpressionsCompleted" minOccurs="1"/>
        <xs:element ref="ImpressionsCompletedCurrentCopy" minOccurs="0"/>
        <xs:element ref="MediaSheetsCompleted" minOccurs="0"/>
        <xs:element ref="OutputDeviceAssigned" minOccurs="0"/>
        <xs:element ref="SheetsCompletedCopyNumber" minOccurs="0"/>
        <xs:element ref="PrintDocumentCounters" minOccurs="0"/>
        <xs:element ref="ServiceUri" minOccurs="0"/>
        <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
  <!-- PrintDocumentStatus - group -->
</xs:complexType>
