PwgSmRev1-185 - EmailInJobTicketType

complexType EmailInJobTicketType

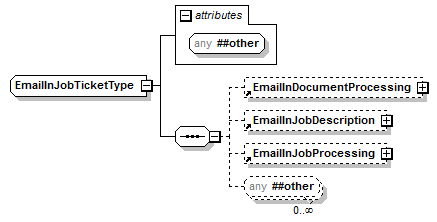

diagram PwgSmRev1-185_p1830.png
namespace http://www.pwg.org/schemas/2012/12/sm
children EmailInDocumentProcessing EmailInJobDescription EmailInJobProcessing
used by
elements DefaultEmailInJobTicket EmailInJobReceipt EmailInJobTicket
attributes
Name  Type  Use  Default  Fixed  Annotation
source <xs:complexType name="EmailInJobTicketType">

<xs:sequence>

<xs:element ref="EmailInDocumentProcessing" minOccurs="0"/>

<xs:element ref="EmailInJobDescription" minOccurs="0"/>

<xs:element ref="EmailInJobProcessing" minOccurs="0"/>

<xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

<xs:anyAttribute namespace="##other" processContents="lax"/>
</xs:complexType>
