@Michael Ziller, I agree.

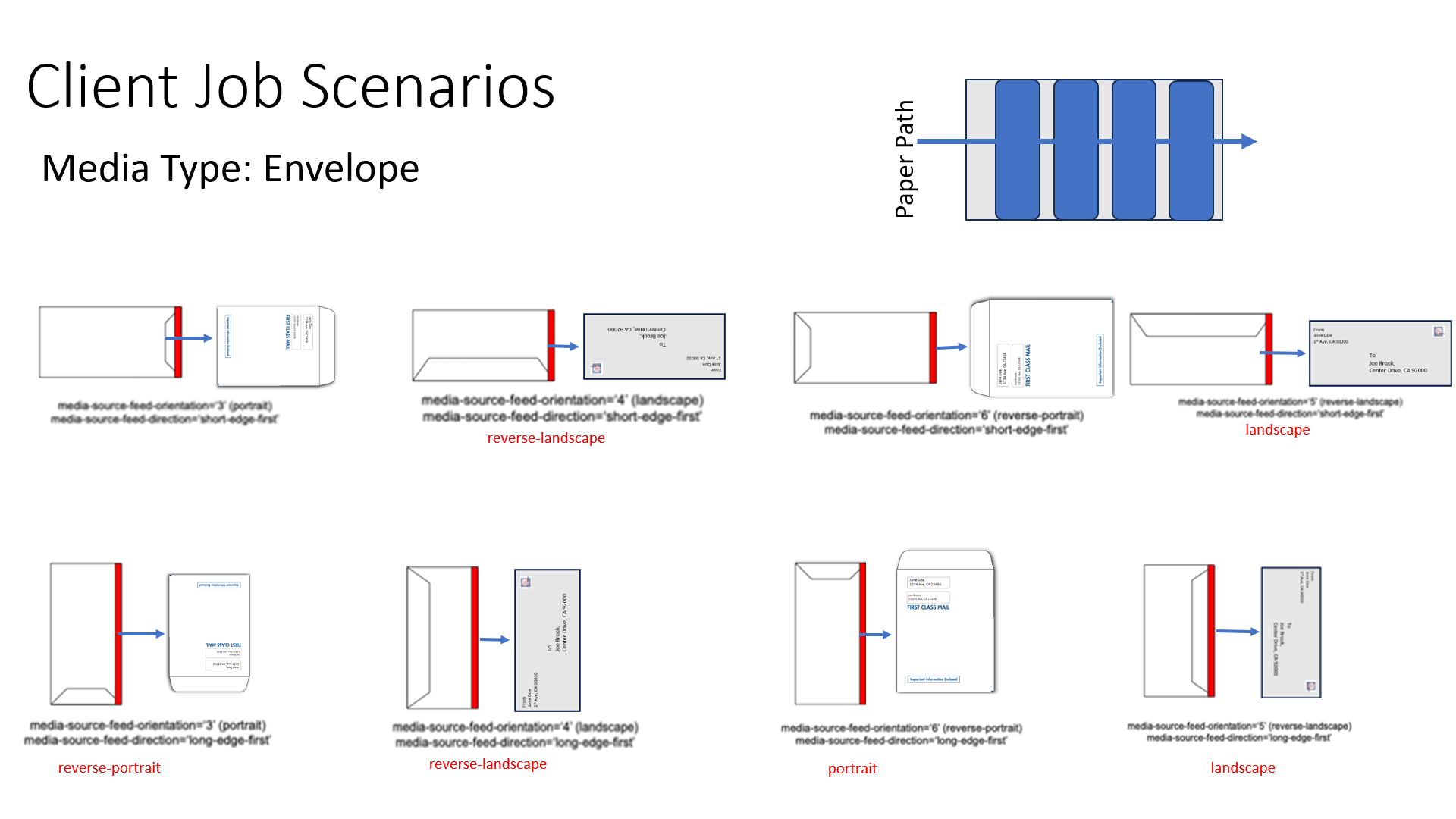

Attached is the client job scenario, same diagram with output illustration and corrected feed-orientation is in red.
Is my understanding right?
Thanks
Charles
-----Original Message-----
From: ipp <ipp-bounces at pwg.org> On Behalf Of Michael Ziller via ipp
Sent: Friday, May 16, 2025 10:03 AM
To: ISTO-PWG Internet Printing Protocol workgroup discussion forum <ipp at pwg.org>
Cc: Michael Ziller <mziller at microsoft.com>
Subject: Re: [IPP] [EXTERNAL] IPP WG Last Call: IPP Envelope Media Extensions v1.0 (ENVELOPE) [Ends May 9, 2025]
Email was not sent from a Canon Network!
Sorry for noticing this late, but can we review Figure 1 - Flap Locations?
It's easier I believe to explain if we rotated all these images with the leading edge at the top of the page. And then:
- The first image has feed-orientation=portrait, feed-direction=short-edge-edge-first, and here the flap is along the leading edge
- But the last image has feed-orientation=reverse-landscape, feed-direction=long-edge-first
Since the envelope flap is also along the leading edge here, shouldn't the feed-orientation be landscape instead of reverse-landscape?
- For the second image, since the flap location is rotated 3 counterclockwise 90 degree rotations from the leading edge, shouldn't feed-orientation be reverse-landscape rather than landscape?
Thanks,
Michael Ziller
-----Original Message-----
From: ipp <ipp-bounces at pwg.org> On Behalf Of Michael Sweet via ipp
Sent: Friday, April 25, 2025 1:30 PM
To: PWG IPP Workgroup <ipp at pwg.org>
Cc: Michael Sweet <msweet at msweet.org>
Subject: [EXTERNAL] [IPP] IPP WG Last Call: IPP Envelope Media Extensions v1.0 (ENVELOPE) [Ends May 9, 2025]
All,
This message starts the IPP workgroup last call of the IPP Envelope Media Extensions v1.0 (ENVELOPE) registration at:
https://ftp.pwg.org/pub/pwg/ipp/wd/wd-ippenvelope10-20250425.pdf
This registration extends the definition of envelope media sizes to include flap location and orientation.
Please "reply all" to this message with any feedback or comments about the content of this registration before 10pm PT on May 9, 2025.
We plan on publishing this registration and the new attributes to the IANA IPP registry after a successful conclusion of this last call.
________________________
Michael Sweet
_______________________________________________
ipp mailing list
ipp at pwg.orghttps://www.pwg.org/mailman/listinfo/ipp
_______________________________________________
ipp mailing list
ipp at pwg.orghttps://www.pwg.org/mailman/listinfo/ipp
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Envelope Job Scenario.png
Type: image/png
Size: 214225 bytes
Desc: Envelope Job Scenario.png
URL: <http://www.pwg.org/pipermail/ipp/attachments/20250516/1bbc28a3/attachment.png>
