Documentation for Semantic Model 3
Definition Type: ComplexType
Name: FaxOutServiceStatusType
Namespace: http://www.pwg.org/schemas/2016/01/sm
Type: pwg:ImagingServiceStatusType
Containing Schema: FaxOutService.xsd
Abstract

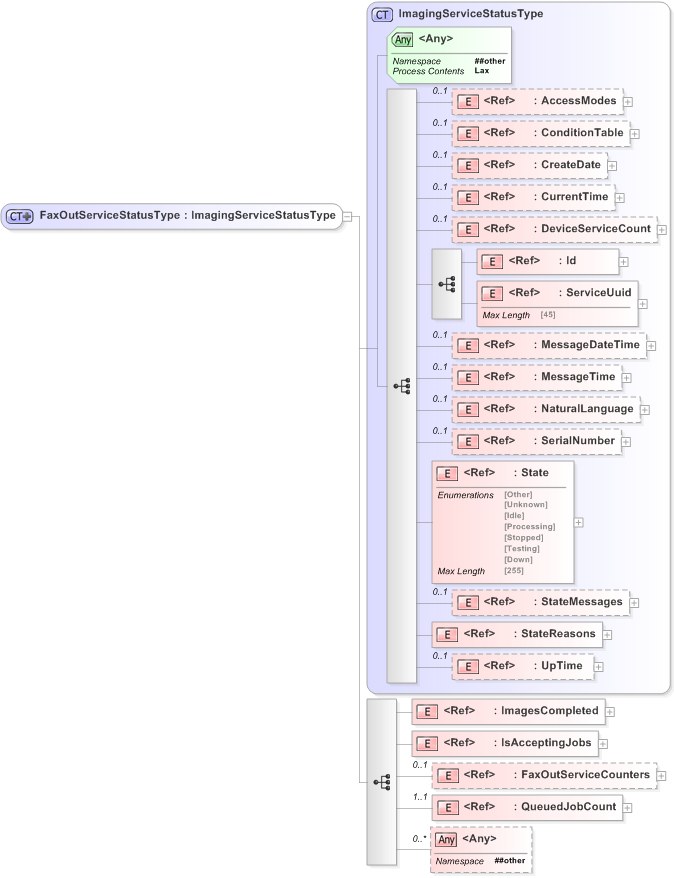

Collapse XSD Schema Diagram:
Drilldown into QueuedJobCount Drilldown into FaxOutServiceCounters Drilldown into IsAcceptingJobs Drilldown into ImagesCompleted Drilldown into UpTime Drilldown into StateReasons Drilldown into StateMessages Drilldown into State Drilldown into SerialNumber Drilldown into NaturalLanguage Drilldown into MessageTime Drilldown into MessageDateTime Drilldown into ServiceUuid Drilldown into Id Drilldown into DeviceServiceCount Drilldown into CurrentTime Drilldown into CreateDate Drilldown into ConditionTable Drilldown into AccessModes Drilldown into ImagingServiceStatusTypeXSD Diagram of FaxOutServiceStatusType
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="FaxOutServiceStatusType">
    <xs:complexContent>
        <xs:extension base="ImagingServiceStatusType">
            <xs:sequence>
                <xs:element ref="ImagesCompleted" />
                <xs:element ref="IsAcceptingJobs" />
                <xs:element ref="FaxOutServiceCounters" minOccurs="0" />
                <xs:element ref="QueuedJobCount" minOccurs="1" />
                <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
    <!-- FaxOutServiceStatus - group -->
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AccessModes pwg:AccessModes 0 (1)
ConditionTable pwg:ConditionTable 0 (1)
CreateDate pwg:CreateDate 0 (1)
CurrentTime pwg:CurrentTime 0 (1)
DeviceServiceCount pwg:DeviceServiceCount 0 (1)
Id pwg:Id (1) (1)
ServiceUuid pwg:ServiceUuid (1) (1)
MessageDateTime pwg:MessageDateTime 0 (1)
MessageTime pwg:MessageTime 0 (1)
NaturalLanguage pwg:NaturalLanguage 0 (1)
SerialNumber pwg:SerialNumber 0 (1)
State pwg:State (1) (1)
StateMessages pwg:StateMessages 0 (1)
StateReasons pwg:StateReasons (1) (1)
UpTime pwg:UpTime 0 (1)
ImagesCompleted pwg:ImagesCompleted (1) (1)
IsAcceptingJobs pwg:IsAcceptingJobs (1) (1)
FaxOutServiceCounters pwg:FaxOutServiceCounters 0 (1)
QueuedJobCount pwg:QueuedJobCount 1 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
pwg:FaxOutServiceStatus
