Documentation for Semantic Model 3
Definition Type: Element
Name: ConditionTable
Namespace: http://www.pwg.org/schemas/2016/01/sm
Containing Schema: Conditions.xsd
Abstract

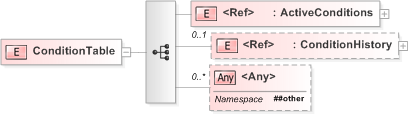

Collapse XSD Schema Diagram:
Drilldown into ConditionHistory Drilldown into ActiveConditionsXSD Diagram of ConditionTable
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:element name="ConditionTable">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="ActiveConditions" />
            <xs:element ref="ConditionHistory" minOccurs="0" />
            <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ActiveConditions pwg:ActiveConditions (1) (1)
ConditionHistory pwg:ConditionHistory 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
