Documentation for Semantic Model 3
Definition Type: ComplexType
Name: ConsoleDescriptionSetType
Namespace: http://www.pwg.org/schemas/2016/01/sm
Type: pwg:SubunitDescription
Containing Schema: Subunits.xsd
Abstract

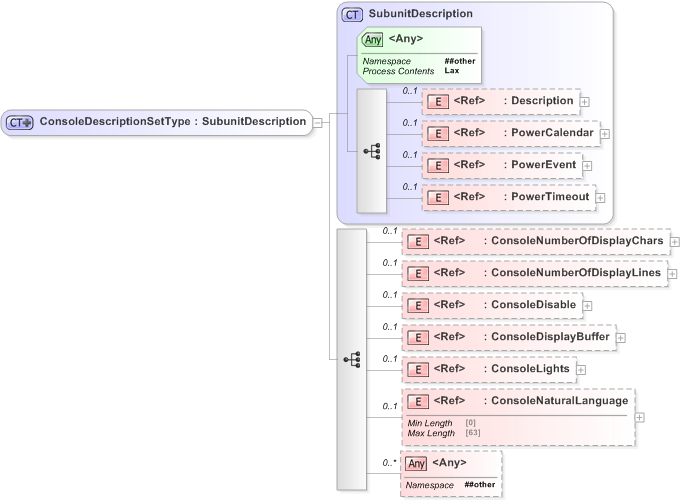

Collapse XSD Schema Diagram:
Drilldown into ConsoleNaturalLanguage Drilldown into ConsoleLights Drilldown into ConsoleDisplayBuffer Drilldown into ConsoleDisable Drilldown into ConsoleNumberOfDisplayLines Drilldown into ConsoleNumberOfDisplayChars Drilldown into PowerTimeout Drilldown into PowerEvent Drilldown into PowerCalendar Drilldown into Description Drilldown into SubunitDescriptionXSD Diagram of ConsoleDescriptionSetType
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="ConsoleDescriptionSetType">
    <xs:complexContent>
        <xs:extension base="SubunitDescription">
            <xs:sequence>
                <!-- SM/1.0 Printer group import -->
                <xs:element ref="ConsoleNumberOfDisplayChars" minOccurs="0" />
                <xs:element ref="ConsoleNumberOfDisplayLines" minOccurs="0" />
                <xs:element ref="ConsoleDisable" minOccurs="0" />
                <xs:element ref="ConsoleDisplayBuffer" minOccurs="0" />
                <xs:element ref="ConsoleLights" minOccurs="0" />
                <xs:element ref="ConsoleNaturalLanguage" minOccurs="0" />
                <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Description pwg:Description 0 (1)
PowerCalendar pwg:PowerCalendar 0 (1)
PowerEvent pwg:PowerEvent 0 (1)
PowerTimeout pwg:PowerTimeout 0 (1)
ConsoleNumberOfDisplayChars pwg:ConsoleNumberOfDisplayChars 0 (1)
ConsoleNumberOfDisplayLines pwg:ConsoleNumberOfDisplayLines 0 (1)
ConsoleDisable pwg:ConsoleDisable 0 (1)
ConsoleDisplayBuffer pwg:ConsoleDisplayBuffer 0 (1)
ConsoleLights pwg:ConsoleLights 0 (1)
ConsoleNaturalLanguage pwg:ConsoleNaturalLanguage 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
pwg:ConsoleDescription
