Documentation for Semantic Model 3
Definition Type: Element
Name: Xris
Namespace: http://www.pwg.org/schemas/2016/01/sm
Containing Schema: PwgCommon.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract

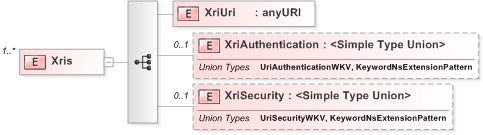

Collapse XSD Schema Diagram:
Drilldown into XriSecurity Drilldown into XriAuthentication Drilldown into XriUriXSD Diagram of Xris
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:element name="Xris" maxOccurs="unbounded">
    <xs:complexType>
        <xs:sequence>
            <xs:element name="XriUri" type="xs:anyURI" />
            <xs:element name="XriAuthentication" minOccurs="0">
                <xs:simpleType>
                    <xs:union memberTypes="pwg:UriAuthenticationWKV pwg:KeywordNsExtensionPattern" />
                </xs:simpleType>
            </xs:element>
            <xs:element name="XriSecurity" minOccurs="0">
                <xs:simpleType>
                    <xs:union memberTypes="pwg:UriSecurityWKV pwg:KeywordNsExtensionPattern" />
                </xs:simpleType>
            </xs:element>
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
XriUri pwg:XriUri (1) (1)
XriAuthentication pwg:XriAuthentication 0 (1)
XriSecurity pwg:XriSecurity 0 (1)
