Documentation for Semantic Model 3
Definition Type: ComplexType
Name: UpdatePrintServiceStateRequestType
Namespace: http://www.pwg.org/schemas/2016/01/sm
Containing Schema: PwgPrintOpMsg.xsd
Abstract

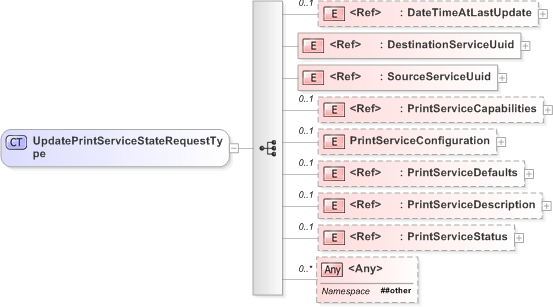

Collapse XSD Schema Diagram:
Drilldown into PrintServiceStatus Drilldown into PrintServiceDescription Drilldown into PrintServiceDefaults Drilldown into PrintServiceConfiguration Drilldown into PrintServiceCapabilities Drilldown into SourceServiceUuid Drilldown into DestinationServiceUuid Drilldown into DateTimeAtLastUpdateXSD Diagram of UpdatePrintServiceStateRequestType
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="UpdatePrintServiceStateRequestType">
    <xs:sequence>
        <xs:element ref="DateTimeAtLastUpdate" minOccurs="0" />
        <xs:element ref="DestinationServiceUuid" />
        <xs:element ref="SourceServiceUuid" />
        <xs:element ref="PrintServiceCapabilities" minOccurs="0" />
        <xs:element name="PrintServiceConfiguration" minOccurs="0">
            <xs:complexType>
                <xs:sequence>
                    <xs:element ref="Consoles" minOccurs="0" />
                    <xs:element ref="Covers" minOccurs="0" />
                    <xs:element ref="Finishers" minOccurs="0" />
                    <xs:element ref="InputChannels" minOccurs="0" />
                    <xs:element ref="InputTrays" minOccurs="0" />
                    <xs:element ref="Interfaces" minOccurs="0" />
                    <xs:element ref="Interpreters" minOccurs="0" />
                    <xs:element ref="Markers" minOccurs="0" />
                    <xs:element ref="MediaPaths" minOccurs="0" />
                    <xs:element ref="OutputTrays" minOccurs="0" />
                    <xs:element ref="Processors" minOccurs="0" />
                    <xs:element ref="Storages" minOccurs="0" />
                    <xs:element ref="VendorSubunits" minOccurs="0" />
                </xs:sequence>
            </xs:complexType>
        </xs:element>
        <xs:element ref="PrintServiceDefaults" minOccurs="0" />
        <xs:element ref="PrintServiceDescription" minOccurs="0" />
        <xs:element ref="PrintServiceStatus" minOccurs="0" />
        <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DateTimeAtLastUpdate pwg:DateTimeAtLastUpdate 0 (1)
DestinationServiceUuid pwg:DestinationServiceUuid (1) (1)
SourceServiceUuid pwg:SourceServiceUuid (1) (1)
PrintServiceCapabilities pwg:PrintServiceCapabilities 0 (1)
PrintServiceConfiguration pwg:PrintServiceConfiguration 0 (1)
PrintServiceDefaults pwg:PrintServiceDefaults 0 (1)
PrintServiceDescription pwg:PrintServiceDescription 0 (1)
PrintServiceStatus pwg:PrintServiceStatus 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Derivation Tree:
Collapse References:
pwg:UpdatePrintServiceStateRequest
