Documentation for Semantic Model 3
Definition Type: Element
Name: SubscriptionStatus
Namespace: http://www.pwg.org/schemas/2016/01/sm
Type: pwg:SubscriptionStatusType
Containing Schema: PwgNotificationOpMsg.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

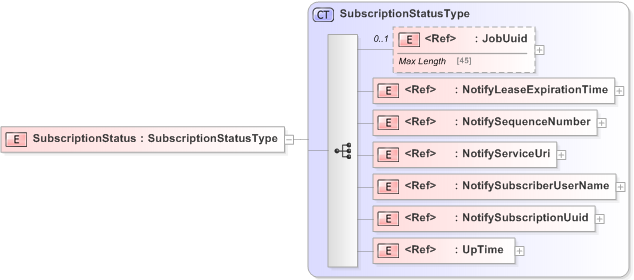

Collapse XSD Schema Diagram:
Drilldown into UpTime Drilldown into NotifySubscriptionUuid Drilldown into NotifySubscriberUserName Drilldown into NotifyServiceUri Drilldown into NotifySequenceNumber Drilldown into NotifyLeaseExpirationTime Drilldown into JobUuid Drilldown into SubscriptionStatusTypeXSD Diagram of SubscriptionStatus
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:element name="SubscriptionStatus" type="SubscriptionStatusType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
JobUuid pwg:JobUuid 0 (1)
NotifyLeaseExpirationTime pwg:NotifyLeaseExpirationTime (1) (1)
NotifySequenceNumber pwg:NotifySequenceNumber (1) (1)
NotifyServiceUri pwg:NotifyServiceUri (1) (1)
NotifySubscriberUserName pwg:NotifySubscriberUserName (1) (1)
NotifySubscriptionUuid pwg:NotifySubscriptionUuid (1) (1)
UpTime pwg:UpTime (1) (1)
Collapse Derivation Tree:
