Documentation for Semantic Model 3
Definition Type: ComplexType
Name: StartupServiceRequestType
Namespace: http://www.pwg.org/schemas/2016/01/sm
Containing Schema: PwgCommonOpMsg.xsd
Abstract
Collapse XSD Schema Diagram:

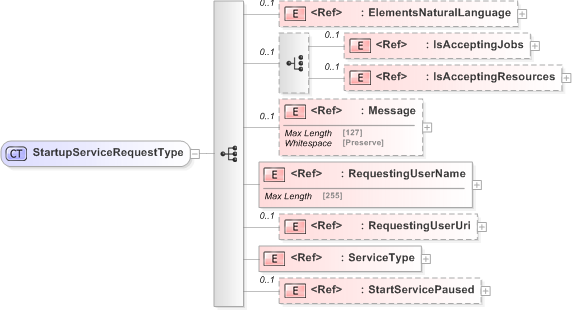

Drilldown into StartServicePaused Drilldown into ServiceType Drilldown into RequestingUserUri Drilldown into RequestingUserName Drilldown into Message Drilldown into IsAcceptingResources Drilldown into IsAcceptingJobs Drilldown into ElementsNaturalLanguageXSD Diagram of StartupServiceRequestType
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="StartupServiceRequestType">
    <xs:sequence>
        <xs:element ref="ElementsNaturalLanguage" minOccurs="0" />
        <xs:choice minOccurs="0">
            <xs:element ref="IsAcceptingJobs" minOccurs="0" />
            <xs:element ref="IsAcceptingResources" minOccurs="0" />
        </xs:choice>
        <xs:element ref="Message" minOccurs="0" />
        <xs:element ref="RequestingUserName" />
        <xs:element ref="RequestingUserUri" minOccurs="0" />
        <xs:element ref="ServiceType" />
        <xs:element ref="StartServicePaused" minOccurs="0" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ElementsNaturalLanguage pwg:ElementsNaturalLanguage 0 (1)
IsAcceptingJobs pwg:IsAcceptingJobs 0 (1)
IsAcceptingResources pwg:IsAcceptingResources 0 (1)
Message pwg:Message 0 (1)
RequestingUserName pwg:RequestingUserName (1) (1)
RequestingUserUri pwg:RequestingUserUri 0 (1)
ServiceType pwg:ServiceType (1) (1)
StartServicePaused pwg:StartServicePaused 0 (1)
Collapse Derivation Tree:
Collapse References:
pwg:StartupServiceRequest
