Documentation for Semantic Model 3
Definition Type: Element
Name: SetFaxOutServiceElementsRequest
Namespace: http://www.pwg.org/schemas/2016/01/sm
Type: pwg:SetFaxOutServiceElementsRequestType
Containing Schema: PwgFaxOutOpMsg.xsd
Abstract

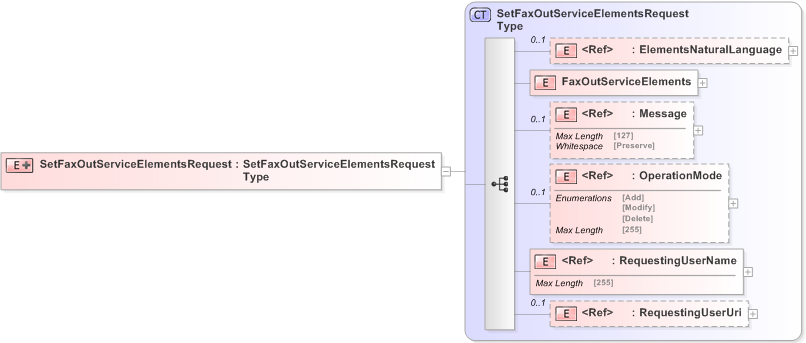

Collapse XSD Schema Diagram:
Drilldown into RequestingUserUri Drilldown into RequestingUserName Drilldown into OperationMode Drilldown into Message Drilldown into FaxOutServiceElements Drilldown into ElementsNaturalLanguage Drilldown into SetFaxOutServiceElementsRequestTypeXSD Diagram of SetFaxOutServiceElementsRequest
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:element name="SetFaxOutServiceElementsRequest">
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="SetFaxOutServiceElementsRequestType" />
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ElementsNaturalLanguage pwg:ElementsNaturalLanguage 0 (1)
FaxOutServiceElements pwg:FaxOutServiceElements (1) (1)
Message pwg:Message 0 (1)
OperationMode pwg:OperationMode 0 (1)
RequestingUserName pwg:RequestingUserName (1) (1)
RequestingUserUri pwg:RequestingUserUri 0 (1)
Collapse Derivation Tree:
