Documentation for Semantic Model 3
Definition Type: Element
Name: ScanServiceDescription
Namespace: http://www.pwg.org/schemas/2016/01/sm
Type: pwg:ScanServiceDescriptionType
Containing Schema: ScanService.xsd
Abstract

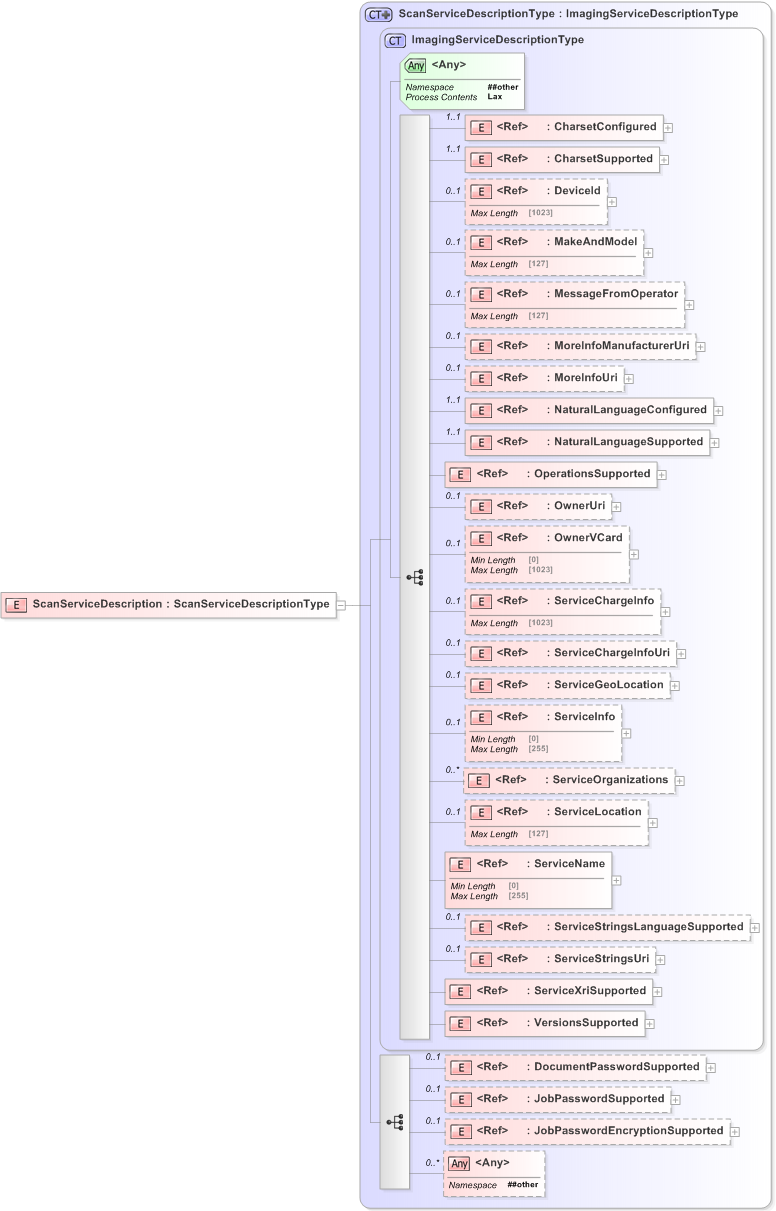

Collapse XSD Schema Diagram:
Drilldown into JobPasswordEncryptionSupported Drilldown into JobPasswordSupported Drilldown into DocumentPasswordSupported Drilldown into VersionsSupported Drilldown into ServiceXriSupported Drilldown into ServiceStringsUri Drilldown into ServiceStringsLanguageSupported Drilldown into ServiceName Drilldown into ServiceLocation Drilldown into ServiceOrganizations Drilldown into ServiceInfo Drilldown into ServiceGeoLocation Drilldown into ServiceChargeInfoUri Drilldown into ServiceChargeInfo Drilldown into OwnerVCard Drilldown into OwnerUri Drilldown into OperationsSupported Drilldown into NaturalLanguageSupported Drilldown into NaturalLanguageConfigured Drilldown into MoreInfoUri Drilldown into MoreInfoManufacturerUri Drilldown into MessageFromOperator Drilldown into MakeAndModel Drilldown into DeviceId Drilldown into CharsetSupported Drilldown into CharsetConfigured Drilldown into ImagingServiceDescriptionType Drilldown into ScanServiceDescriptionTypeXSD Diagram of ScanServiceDescription
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:element name="ScanServiceDescription" type="ScanServiceDescriptionType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CharsetConfigured pwg:CharsetConfigured 1 (1)
CharsetSupported pwg:CharsetSupported 1 (1)
DeviceId pwg:DeviceId 0 (1)
MakeAndModel pwg:MakeAndModel 0 (1)
MessageFromOperator pwg:MessageFromOperator 0 (1)
MoreInfoManufacturerUri pwg:MoreInfoManufacturerUri 0 (1)
MoreInfoUri pwg:MoreInfoUri 0 (1)
NaturalLanguageConfigured pwg:NaturalLanguageConfigured 1 (1)
NaturalLanguageSupported pwg:NaturalLanguageSupported 1 (1)
OperationsSupported pwg:OperationsSupported (1) (1)
OwnerUri pwg:OwnerUri 0 (1)
OwnerVCard pwg:OwnerVCard 0 (1)
ServiceChargeInfo pwg:ServiceChargeInfo 0 (1)
ServiceChargeInfoUri pwg:ServiceChargeInfoUri 0 (1)
ServiceGeoLocation pwg:ServiceGeoLocation 0 (1)
ServiceInfo pwg:ServiceInfo 0 (1)
ServiceOrganizations pwg:ServiceOrganizations 0 unbounded
ServiceLocation pwg:ServiceLocation 0 (1)
ServiceName pwg:ServiceName (1) (1)
ServiceStringsLanguageSupported pwg:ServiceStringsLanguageSupported 0 (1)
ServiceStringsUri pwg:ServiceStringsUri 0 (1)
ServiceXriSupported pwg:ServiceXriSupported (1) (1)
VersionsSupported pwg:VersionsSupported (1) (1)
DocumentPasswordSupported pwg:DocumentPasswordSupported 0 (1)
JobPasswordSupported pwg:JobPasswordSupported 0 (1)
JobPasswordEncryptionSupported pwg:JobPasswordEncryptionSupported 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
