Documentation for Semantic Model 3
Definition Type: ComplexType
Name: ScanJobTicketType
Namespace: http://www.pwg.org/schemas/2016/01/sm
Containing Schema: ScanService.xsd
Abstract

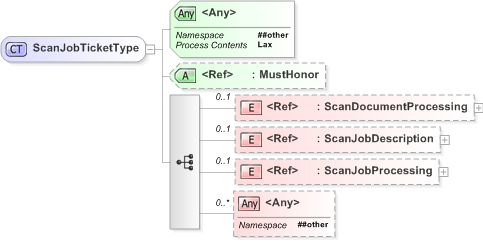

Collapse XSD Schema Diagram:
Drilldown into ScanJobProcessing Drilldown into ScanJobDescription Drilldown into ScanDocumentProcessing Drilldown into MustHonorXSD Diagram of ScanJobTicketType
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="ScanJobTicketType">
    <xs:sequence>
        <xs:element ref="ScanDocumentProcessing" minOccurs="0" />
        <xs:element ref="ScanJobDescription" minOccurs="0" />
        <xs:element ref="ScanJobProcessing" minOccurs="0" />
        <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
    <xs:attribute ref="MustHonor" />
    <xs:anyAttribute namespace="##other" processContents="lax" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ScanDocumentProcessing pwg:ScanDocumentProcessing 0 (1)
ScanJobDescription pwg:ScanJobDescription 0 (1)
ScanJobProcessing pwg:ScanJobProcessing 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
MustHonor pwg:MustHonor (Optional)
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
pwg:DefaultScanJobTicket, pwg:ScanJobReceipt, pwg:ScanJobReceipt, pwg:ScanJobTicket
