Documentation for Semantic Model 3
Definition Type: ComplexType
Name: ScanJobProcessingType
Namespace: http://www.pwg.org/schemas/2016/01/sm
Type: pwg:ImagingJobProcessingType
Containing Schema: ScanService.xsd
Abstract

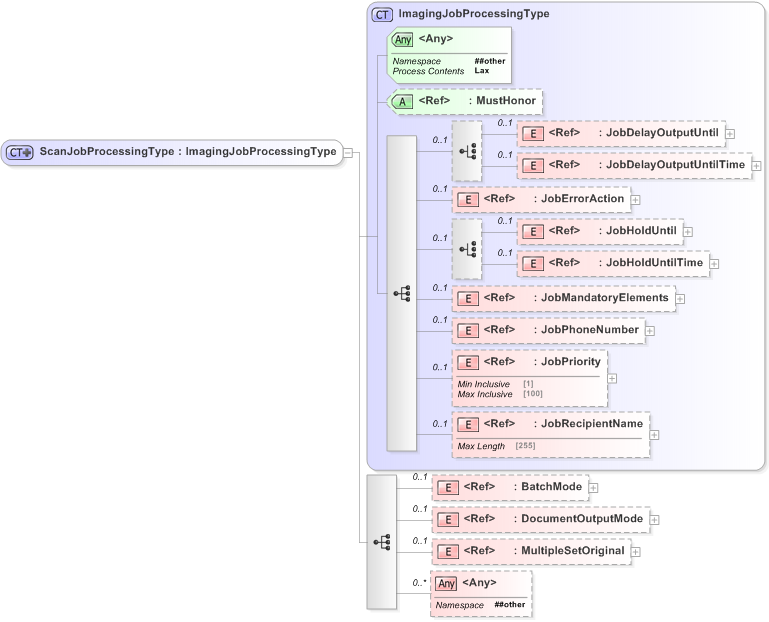

Collapse XSD Schema Diagram:
Drilldown into MultipleSetOriginal Drilldown into DocumentOutputMode Drilldown into BatchMode Drilldown into JobRecipientName Drilldown into JobPriority Drilldown into JobPhoneNumber Drilldown into JobMandatoryElements Drilldown into JobHoldUntilTime Drilldown into JobHoldUntil Drilldown into JobErrorAction Drilldown into JobDelayOutputUntilTime Drilldown into JobDelayOutputUntil Drilldown into MustHonor Drilldown into ImagingJobProcessingTypeXSD Diagram of ScanJobProcessingType
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="ScanJobProcessingType">
    <xs:complexContent>
        <xs:extension base="ImagingJobProcessingType">
            <xs:sequence>
                <!-- Scan job processing references here -->
                <xs:element ref="BatchMode" minOccurs="0" />
                <xs:element ref="DocumentOutputMode" minOccurs="0" />
                <xs:element ref="MultipleSetOriginal" minOccurs="0" />
                <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
    <!-- ScanJobProcessing - group -->
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
JobDelayOutputUntil pwg:JobDelayOutputUntil 0 (1)
JobDelayOutputUntilTime pwg:JobDelayOutputUntilTime 0 (1)
JobErrorAction pwg:JobErrorAction 0 (1)
JobHoldUntil pwg:JobHoldUntil 0 (1)
JobHoldUntilTime pwg:JobHoldUntilTime 0 (1)
JobMandatoryElements pwg:JobMandatoryElements 0 (1)
JobPhoneNumber pwg:JobPhoneNumber 0 (1)
JobPriority pwg:JobPriority 0 (1)
JobRecipientName pwg:JobRecipientName 0 (1)
BatchMode pwg:BatchMode 0 (1)
DocumentOutputMode pwg:DocumentOutputMode 0 (1)
MultipleSetOriginal pwg:MultipleSetOriginal 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
MustHonor pwg:MustHonor (Optional)
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
pwg:ScanJobProcessing
