Definition Type: Element
Name: ResourceService
Namespace: http://www.pwg.org/schemas/2016/01/sm
Type: pwg:ResourceServiceType
Containing Schema: ResourceService.xsd
Abstract

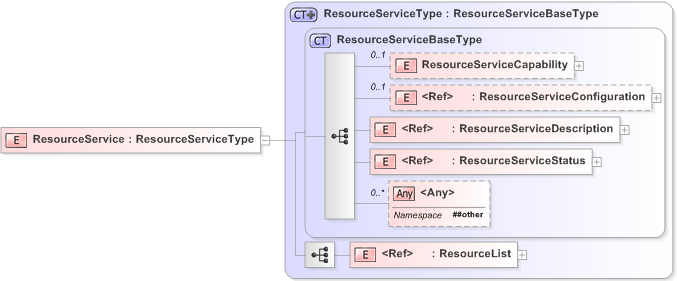

Collapse XSD Schema Diagram:
Drilldown into ResourceList Drilldown into ResourceServiceStatus Drilldown into ResourceServiceDescription Drilldown into ResourceServiceConfiguration Drilldown into ResourceServiceCapability Drilldown into ResourceServiceBaseType Drilldown into ResourceServiceTypeXSD Diagram of ResourceService
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:element name="ResourceService" type="ResourceServiceType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ResourceServiceCapability pwg:ResourceServiceCapability 0 (1)
ResourceServiceConfiguration pwg:ResourceServiceConfiguration 0 (1)
ResourceServiceDescription pwg:ResourceServiceDescription (1) (1)
ResourceServiceStatus pwg:ResourceServiceStatus (1) (1)
ResourceList pwg:ResourceList (1) (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Derivation Tree:
