Documentation for Semantic Model 3
Definition Type: ComplexType
Name: RenewResourceRequestType
Namespace: http://www.pwg.org/schemas/2016/01/sm
Containing Schema: PwgResourceOpMsg.xsd
Abstract

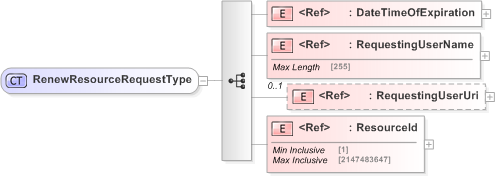

Collapse XSD Schema Diagram:
Drilldown into ResourceId Drilldown into RequestingUserUri Drilldown into RequestingUserName Drilldown into DateTimeOfExpirationXSD Diagram of RenewResourceRequestType
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="RenewResourceRequestType">
    <xs:sequence>
        <xs:element ref="DateTimeOfExpiration" />
        <xs:element ref="RequestingUserName" />
        <xs:element ref="RequestingUserUri" minOccurs="0" />
        <xs:element ref="ResourceId" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DateTimeOfExpiration pwg:DateTimeOfExpiration (1) (1)
RequestingUserName pwg:RequestingUserName (1) (1)
RequestingUserUri pwg:RequestingUserUri 0 (1)
ResourceId pwg:ResourceId (1) (1)
Collapse Derivation Tree:
Collapse References:
pwg:RenewResourceRequest
