Documentation for Semantic Model 3
Definition Type: ComplexType
Name: PrintUriRequestType
Namespace: http://www.pwg.org/schemas/2016/01/sm
Containing Schema: PwgPrintOpMsg.xsd
Abstract

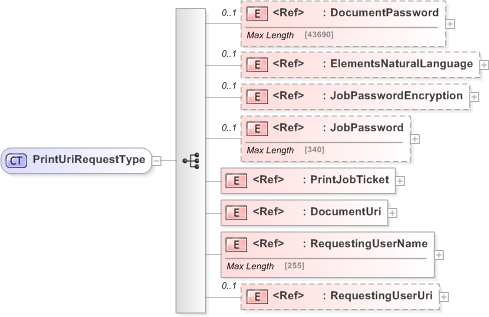

Collapse XSD Schema Diagram:
Drilldown into RequestingUserUri Drilldown into RequestingUserName Drilldown into DocumentUri Drilldown into PrintJobTicket Drilldown into JobPassword Drilldown into JobPasswordEncryption Drilldown into ElementsNaturalLanguage Drilldown into DocumentPasswordXSD Diagram of PrintUriRequestType
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="PrintUriRequestType">
    <xs:sequence>
        <xs:element ref="DocumentPassword" minOccurs="0" />
        <xs:element ref="ElementsNaturalLanguage" minOccurs="0" />
        <xs:element ref="JobPasswordEncryption" minOccurs="0" />
        <xs:element ref="JobPassword" minOccurs="0" />
        <xs:element ref="PrintJobTicket" />
        <xs:element ref="DocumentUri" />
        <xs:element ref="RequestingUserName" />
        <xs:element ref="RequestingUserUri" minOccurs="0" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentPassword pwg:DocumentPassword 0 (1)
ElementsNaturalLanguage pwg:ElementsNaturalLanguage 0 (1)
JobPasswordEncryption pwg:JobPasswordEncryption 0 (1)
JobPassword pwg:JobPassword 0 (1)
PrintJobTicket pwg:PrintJobTicket (1) (1)
DocumentUri pwg:DocumentUri (1) (1)
RequestingUserName pwg:RequestingUserName (1) (1)
RequestingUserUri pwg:RequestingUserUri 0 (1)
Collapse Derivation Tree:
Collapse References:
pwg:PrintUriRequest
