Documentation for Semantic Model 3
Definition Type: Element
Name: PrintJobRequest
Namespace: http://www.pwg.org/schemas/2016/01/sm
Type: pwg:PrintJobRequestType
Containing Schema: PwgPrintOpMsg.xsd
Abstract

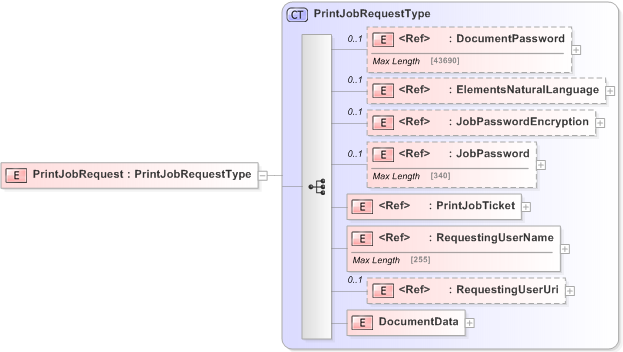

Collapse XSD Schema Diagram:
Drilldown into DocumentData Drilldown into RequestingUserUri Drilldown into RequestingUserName Drilldown into PrintJobTicket Drilldown into JobPassword Drilldown into JobPasswordEncryption Drilldown into ElementsNaturalLanguage Drilldown into DocumentPassword Drilldown into PrintJobRequestTypeXSD Diagram of PrintJobRequest
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:element name="PrintJobRequest" type="PrintJobRequestType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentPassword pwg:DocumentPassword 0 (1)
ElementsNaturalLanguage pwg:ElementsNaturalLanguage 0 (1)
JobPasswordEncryption pwg:JobPasswordEncryption 0 (1)
JobPassword pwg:JobPassword 0 (1)
PrintJobTicket pwg:PrintJobTicket (1) (1)
RequestingUserName pwg:RequestingUserName (1) (1)
RequestingUserUri pwg:RequestingUserUri 0 (1)
DocumentData pwg:DocumentData (1) (1)
Collapse Derivation Tree:
