Documentation for Semantic Model 3
Definition Type: Element
Name: PrintJobProcessing
Namespace: http://www.pwg.org/schemas/2016/01/sm
Type: pwg:PrintJobProcessingDefaultType
Containing Schema: PrintJobTicket.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

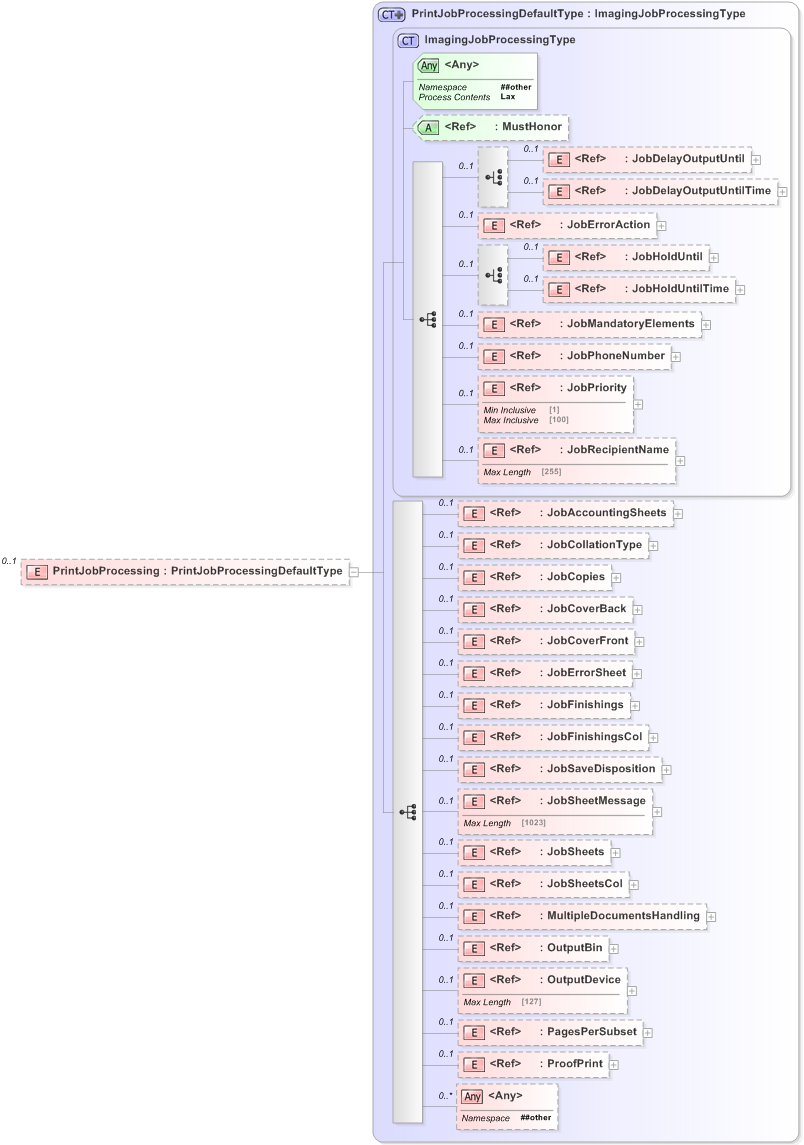

Collapse XSD Schema Diagram:
Drilldown into ProofPrint Drilldown into PagesPerSubset Drilldown into OutputDevice Drilldown into OutputBin Drilldown into MultipleDocumentsHandling Drilldown into JobSheetsCol Drilldown into JobSheets Drilldown into JobSheetMessage Drilldown into JobSaveDisposition Drilldown into JobFinishingsCol Drilldown into JobFinishings Drilldown into JobErrorSheet Drilldown into JobCoverFront Drilldown into JobCoverBack Drilldown into JobCopies Drilldown into JobCollationType Drilldown into JobAccountingSheets Drilldown into JobRecipientName Drilldown into JobPriority Drilldown into JobPhoneNumber Drilldown into JobMandatoryElements Drilldown into JobHoldUntilTime Drilldown into JobHoldUntil Drilldown into JobErrorAction Drilldown into JobDelayOutputUntilTime Drilldown into JobDelayOutputUntil Drilldown into MustHonor Drilldown into ImagingJobProcessingType Drilldown into PrintJobProcessingDefaultTypeXSD Diagram of PrintJobProcessing
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:element name="PrintJobProcessing" type="PrintJobProcessingDefaultType" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
JobDelayOutputUntil pwg:JobDelayOutputUntil 0 (1)
JobDelayOutputUntilTime pwg:JobDelayOutputUntilTime 0 (1)
JobErrorAction pwg:JobErrorAction 0 (1)
JobHoldUntil pwg:JobHoldUntil 0 (1)
JobHoldUntilTime pwg:JobHoldUntilTime 0 (1)
JobMandatoryElements pwg:JobMandatoryElements 0 (1)
JobPhoneNumber pwg:JobPhoneNumber 0 (1)
JobPriority pwg:JobPriority 0 (1)
JobRecipientName pwg:JobRecipientName 0 (1)
JobAccountingSheets pwg:JobAccountingSheets 0 (1)
JobCollationType pwg:JobCollationType 0 (1)
JobCopies pwg:JobCopies 0 (1)
JobCoverBack pwg:JobCoverBack 0 (1)
JobCoverFront pwg:JobCoverFront 0 (1)
JobErrorSheet pwg:JobErrorSheet 0 (1)
JobFinishings pwg:JobFinishings 0 (1)
JobFinishingsCol pwg:JobFinishingsCol 0 (1)
JobSaveDisposition pwg:JobSaveDisposition 0 (1)
JobSheetMessage pwg:JobSheetMessage 0 (1)
JobSheets pwg:JobSheets 0 (1)
JobSheetsCol pwg:JobSheetsCol 0 (1)
MultipleDocumentsHandling pwg:MultipleDocumentsHandling 0 (1)
OutputBin pwg:OutputBin 0 (1)
OutputDevice pwg:OutputDevice 0 (1)
PagesPerSubset pwg:PagesPerSubset 0 (1)
ProofPrint pwg:ProofPrint 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
MustHonor pwg:MustHonor (Optional)
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
