Documentation for Semantic Model 3
Definition Type: ComplexType
Name: OutputTraySetType
Namespace: http://www.pwg.org/schemas/2016/01/sm
Containing Schema: Subunits.xsd
Abstract
Collapse XSD Schema Diagram:

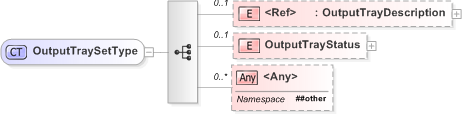

Drilldown into OutputTrayStatus Drilldown into OutputTrayDescriptionXSD Diagram of OutputTraySetType
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="OutputTraySetType">
    <xs:sequence>
        <xs:element ref="OutputTrayDescription" minOccurs="0" />
        <xs:element name="OutputTrayStatus" minOccurs="0">
            <xs:complexType>
                <xs:sequence>
                    <xs:element ref="Id" />
                </xs:sequence>
            </xs:complexType>
        </xs:element>
        <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
    <!-- OutputTray - type -->
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
OutputTrayDescription pwg:OutputTrayDescription 0 (1)
OutputTrayStatus pwg:OutputTrayStatus 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Derivation Tree:
Collapse References:
pwg:OutputTray
