Documentation for Semantic Model 3
Definition Type: Element
Name: OutputChannelInterface
Namespace: http://www.pwg.org/schemas/2016/01/sm
Type: pwg:InterfaceType
Containing Schema: Subunits.xsd
Abstract

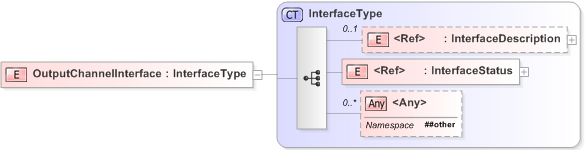

Collapse XSD Schema Diagram:
Drilldown into InterfaceStatus Drilldown into InterfaceDescription Drilldown into InterfaceTypeXSD Diagram of OutputChannelInterface
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:element name="OutputChannelInterface" type="InterfaceType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
InterfaceDescription pwg:InterfaceDescription 0 (1)
InterfaceStatus pwg:InterfaceStatus (1) (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Derivation Tree:
