Documentation for Semantic Model 3
Definition Type: ComplexType
Name: ObjectServiceReferenceType
Namespace: http://www.pwg.org/schemas/2016/01/sm
Containing Schema: PwgCommon.xsd
Abstract

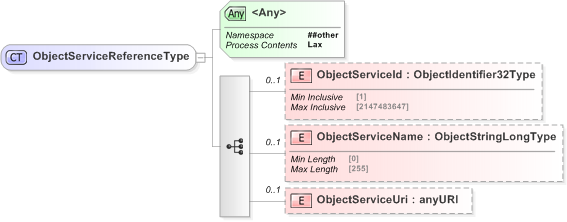

Collapse XSD Schema Diagram:
Drilldown into ObjectServiceUri Drilldown into ObjectServiceName Drilldown into ObjectServiceIdXSD Diagram of ObjectServiceReferenceType
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="ObjectServiceReferenceType">
    <xs:sequence>
        <xs:element name="ObjectServiceId" type="ObjectIdentifier32Type" minOccurs="0" />
        <xs:element name="ObjectServiceName" type="ObjectStringLongType" minOccurs="0" />
        <xs:element name="ObjectServiceUri" type="xs:anyURI" minOccurs="0" />
    </xs:sequence>
    <xs:anyAttribute namespace="##other" processContents="lax" />
    <!-- see printer-name - section 4.4.4 [RFC2911] -->
    <!-- see printer-uri-supported - section 4.4.1 [RFC2911] -->
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ObjectServiceId pwg:ObjectServiceId 0 (1)
ObjectServiceName pwg:ObjectServiceName 0 (1)
ObjectServiceUri pwg:ObjectServiceUri 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
pwg:ObjectServiceReference, pwg:ObjectServiceReference
