Documentation for Semantic Model 3
Definition Type: ComplexType
Name: MarkerStatusType
Namespace: http://www.pwg.org/schemas/2016/01/sm
Type: pwg:SubunitStatus
Containing Schema: Subunits.xsd
Abstract

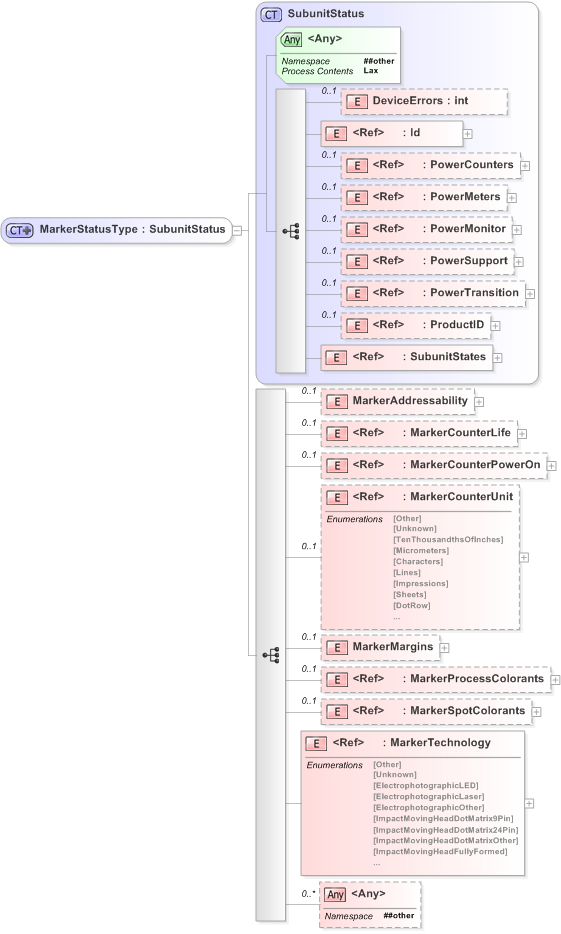

Collapse XSD Schema Diagram:
Drilldown into MarkerTechnology Drilldown into MarkerSpotColorants Drilldown into MarkerProcessColorants Drilldown into MarkerMargins Drilldown into MarkerCounterUnit Drilldown into MarkerCounterPowerOn Drilldown into MarkerCounterLife Drilldown into MarkerAddressability Drilldown into SubunitStates Drilldown into ProductID Drilldown into PowerTransition Drilldown into PowerSupport Drilldown into PowerMonitor Drilldown into PowerMeters Drilldown into PowerCounters Drilldown into Id Drilldown into DeviceErrors Drilldown into SubunitStatusXSD Diagram of MarkerStatusType
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="MarkerStatusType">
    <xs:complexContent>
        <xs:extension base="SubunitStatus">
            <xs:sequence>
                <!-- SM/1.0 Printer group import -->
                <xs:element name="MarkerAddressability" minOccurs="0">
                    <xs:complexType>
                        <xs:sequence>
                            <xs:element ref="MarkerAddressabilityBasis" minOccurs="0" />
                            <xs:element ref="MarkerAddressabilityCrossFeed" minOccurs="0" />
                            <xs:element ref="MarkerAddressabilityFeed" minOccurs="0" />
                            <xs:element ref="MarkerAddressabilityUnit" minOccurs="0" />
                        </xs:sequence>
                    </xs:complexType>
                </xs:element>
                <xs:element ref="MarkerCounterLife" minOccurs="0" />
                <xs:element ref="MarkerCounterPowerOn" minOccurs="0" />
                <xs:element ref="MarkerCounterUnit" minOccurs="0" />
                <xs:element name="MarkerMargins" minOccurs="0">
                    <xs:complexType>
                        <xs:sequence>
                            <xs:element ref="MarkerEastMargin" minOccurs="0" />
                            <xs:element ref="MarkerMarginBasis" minOccurs="0" />
                            <xs:element ref="MarkerNorthMargin" minOccurs="0" />
                            <xs:element ref="MarkerSouthMargin" minOccurs="0" />
                            <xs:element ref="MarkerWestMargin" minOccurs="0" />
                        </xs:sequence>
                    </xs:complexType>
                </xs:element>
                <xs:element ref="MarkerProcessColorants" minOccurs="0" />
                <xs:element ref="MarkerSpotColorants" minOccurs="0" />
                <xs:element ref="MarkerTechnology" />
                <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DeviceErrors pwg:DeviceErrors 0 (1)
Id pwg:Id (1) (1)
PowerCounters pwg:PowerCounters 0 (1)
PowerMeters pwg:PowerMeters 0 (1)
PowerMonitor pwg:PowerMonitor 0 (1)
PowerSupport pwg:PowerSupport 0 (1)
PowerTransition pwg:PowerTransition 0 (1)
ProductID pwg:ProductID 0 (1)
SubunitStates pwg:SubunitStates (1) (1)
MarkerAddressability pwg:MarkerAddressability 0 (1)
MarkerCounterLife pwg:MarkerCounterLife 0 (1)
MarkerCounterPowerOn pwg:MarkerCounterPowerOn 0 (1)
MarkerCounterUnit pwg:MarkerCounterUnit 0 (1)
MarkerMargins pwg:MarkerMargins 0 (1)
MarkerProcessColorants pwg:MarkerProcessColorants 0 (1)
MarkerSpotColorants pwg:MarkerSpotColorants 0 (1)
MarkerTechnology pwg:MarkerTechnology (1) (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
pwg:MarkerStatus
