Documentation for Semantic Model 3
Definition Type: Element
Name: Maintenance
Namespace: http://www.pwg.org/schemas/2016/01/sm
Type: pwg:PrintCounts
Containing Schema: Counter.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
counts while in maintenance mode

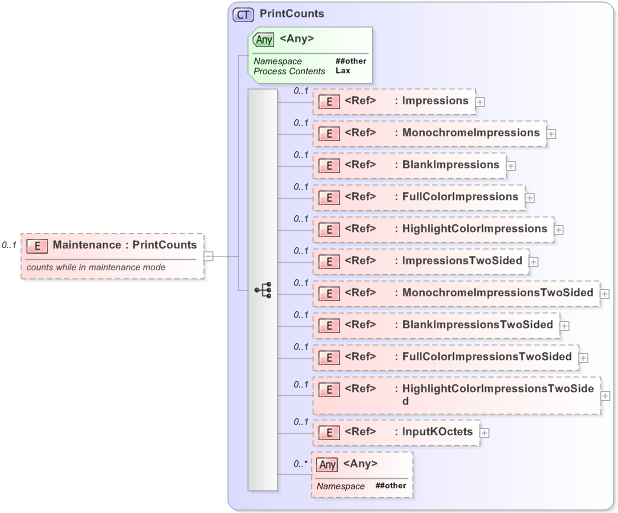

Collapse XSD Schema Diagram:
Drilldown into InputKOctets Drilldown into HighlightColorImpressionsTwoSided Drilldown into FullColorImpressionsTwoSided Drilldown into BlankImpressionsTwoSided Drilldown into MonochromeImpressionsTwoSided Drilldown into ImpressionsTwoSided Drilldown into HighlightColorImpressions Drilldown into FullColorImpressions Drilldown into BlankImpressions Drilldown into MonochromeImpressions Drilldown into Impressions Drilldown into PrintCountsXSD Diagram of Maintenance
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:element name="Maintenance" type="PrintCounts" minOccurs="0">
    <xs:annotation>
        <xs:documentation>counts while in maintenance mode </xs:documentation>
    </xs:annotation>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Impressions pwg:Impressions 0 (1)
MonochromeImpressions pwg:MonochromeImpressions 0 (1)
BlankImpressions pwg:BlankImpressions 0 (1)
FullColorImpressions pwg:FullColorImpressions 0 (1)
HighlightColorImpressions pwg:HighlightColorImpressions 0 (1)
ImpressionsTwoSided pwg:ImpressionsTwoSided 0 (1)
MonochromeImpressionsTwoSided pwg:MonochromeImpressionsTwoSided 0 (1)
BlankImpressionsTwoSided pwg:BlankImpressionsTwoSided 0 (1)
FullColorImpressionsTwoSided pwg:FullColorImpressionsTwoSided 0 (1)
HighlightColorImpressionsTwoSided pwg:HighlightColorImpressionsTwoSided 0 (1)
InputKOctets pwg:InputKOctets 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
