Documentation for Semantic Model 3
Definition Type: Element
Name: ImagingServiceDefaultJobTicket
Namespace: http://www.pwg.org/schemas/2016/01/sm
Type: pwg:ImagingJobTicketType
Containing Schema: ServiceTypes.xsd
Abstract
Documentation:
Abstract Base Class

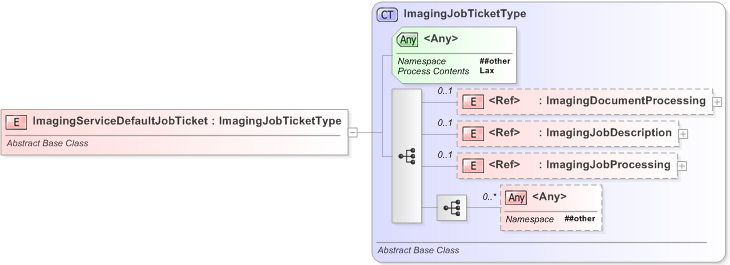

Collapse XSD Schema Diagram:
Drilldown into ImagingJobProcessing Drilldown into ImagingJobDescription Drilldown into ImagingDocumentProcessing Drilldown into ImagingJobTicketTypeXSD Diagram of ImagingServiceDefaultJobTicket
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:element name="ImagingServiceDefaultJobTicket" type="ImagingJobTicketType">
    <xs:annotation>
        <xs:documentation>Abstract Base Class</xs:documentation>
    </xs:annotation>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ImagingDocumentProcessing pwg:ImagingDocumentProcessing 0 (1)
ImagingJobDescription pwg:ImagingJobDescription 0 (1)
ImagingJobProcessing pwg:ImagingJobProcessing 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
