Documentation for Semantic Model 3
Definition Type: ComplexType
Name: HoldJobRequestType
Namespace: http://www.pwg.org/schemas/2016/01/sm
Containing Schema: PwgCommonOpMsg.xsd
Abstract

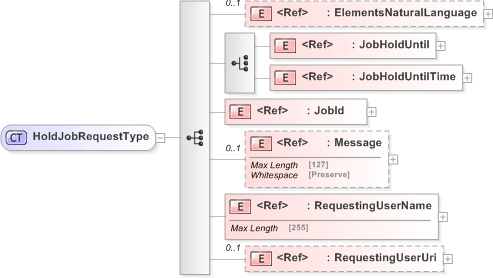

Collapse XSD Schema Diagram:
Drilldown into RequestingUserUri Drilldown into RequestingUserName Drilldown into Message Drilldown into JobId Drilldown into JobHoldUntilTime Drilldown into JobHoldUntil Drilldown into ElementsNaturalLanguageXSD Diagram of HoldJobRequestType
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="HoldJobRequestType">
    <xs:sequence>
        <xs:element ref="ElementsNaturalLanguage" minOccurs="0" />
        <xs:choice>
            <xs:element ref="JobHoldUntil" />
            <xs:element ref="JobHoldUntilTime" />
        </xs:choice>
        <xs:element ref="JobId" />
        <xs:element ref="Message" minOccurs="0" />
        <xs:element ref="RequestingUserName" />
        <xs:element ref="RequestingUserUri" minOccurs="0" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ElementsNaturalLanguage pwg:ElementsNaturalLanguage 0 (1)
JobHoldUntil pwg:JobHoldUntil (1) (1)
JobHoldUntilTime pwg:JobHoldUntilTime (1) (1)
JobId pwg:JobId (1) (1)
Message pwg:Message 0 (1)
RequestingUserName pwg:RequestingUserName (1) (1)
RequestingUserUri pwg:RequestingUserUri 0 (1)
Collapse Derivation Tree:
Collapse References:
pwg:HoldCopyJobRequest, pwg:HoldFaxInJobRequest, pwg:HoldFaxOutJobRequest, pwg:HoldPrintJobRequest, pwg:HoldScanJobRequest, pwg:HoldTransformJobRequest
