Documentation for Semantic Model 3
Definition Type: Element
Name: FaxOutServiceElements
Namespace: http://www.pwg.org/schemas/2016/01/sm
Type: pwg:FaxOutElementsType
Containing Schema: PwgFaxOutOpMsg.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

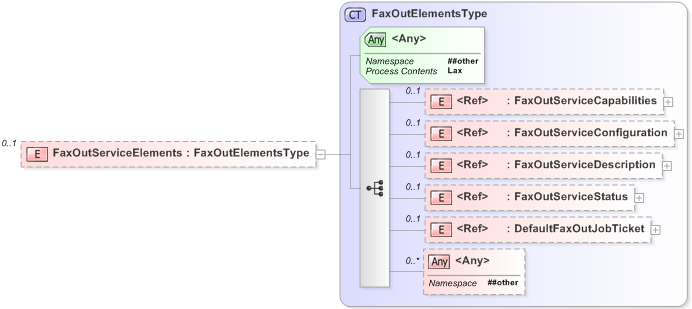

Collapse XSD Schema Diagram:
Drilldown into DefaultFaxOutJobTicket Drilldown into FaxOutServiceStatus Drilldown into FaxOutServiceDescription Drilldown into FaxOutServiceConfiguration Drilldown into FaxOutServiceCapabilities Drilldown into FaxOutElementsTypeXSD Diagram of FaxOutServiceElements
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:element name="FaxOutServiceElements" type="FaxOutElementsType" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
FaxOutServiceCapabilities pwg:FaxOutServiceCapabilities 0 (1)
FaxOutServiceConfiguration pwg:FaxOutServiceConfiguration 0 (1)
FaxOutServiceDescription pwg:FaxOutServiceDescription 0 (1)
FaxOutServiceStatus pwg:FaxOutServiceStatus 0 (1)
DefaultFaxOutJobTicket pwg:DefaultFaxOutJobTicket 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
