Definition Type: Element
Name: FaxOutJobStatus
Namespace: http://www.pwg.org/schemas/2016/01/sm
Type: pwg:FaxOutJobStatusType
Containing Schema: FaxOutService.xsd
Abstract

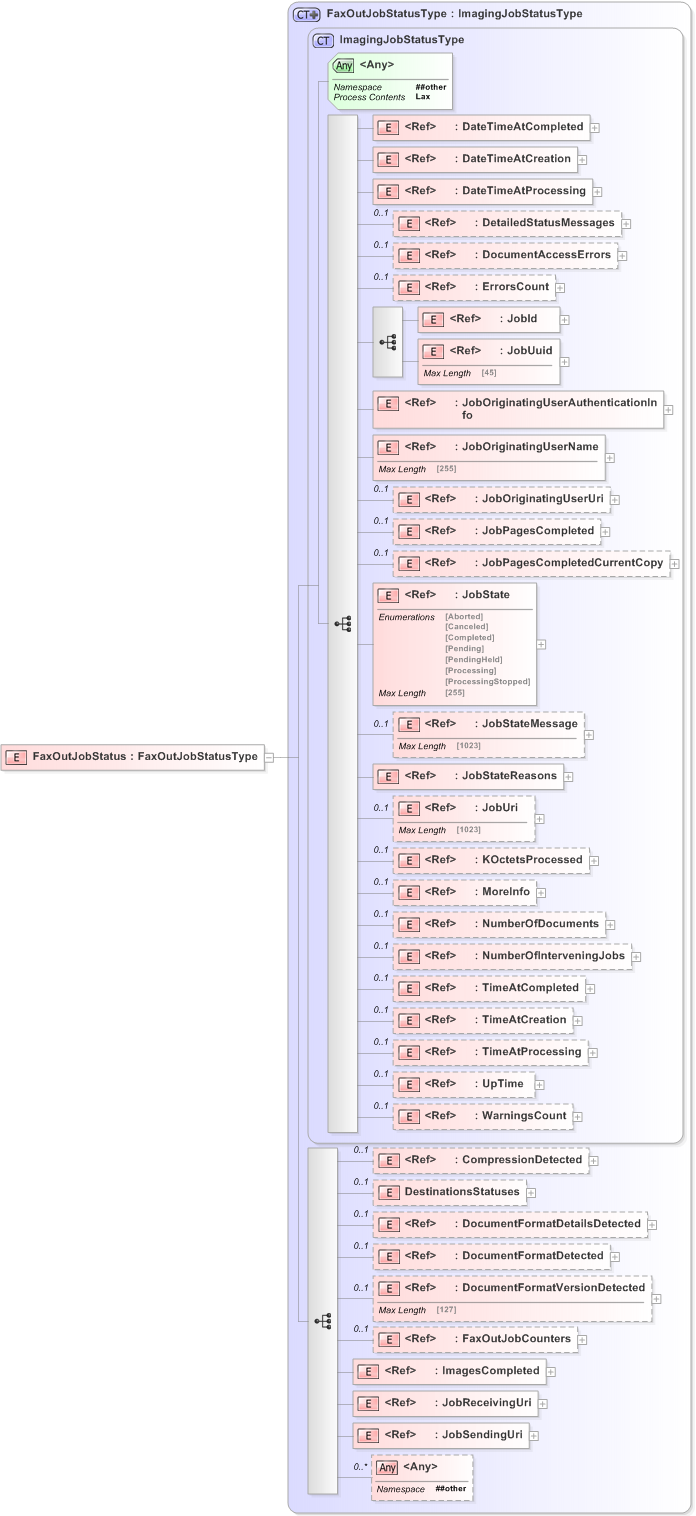

Collapse XSD Schema Diagram:
Drilldown into JobSendingUri Drilldown into JobReceivingUri Drilldown into ImagesCompleted Drilldown into FaxOutJobCounters Drilldown into DocumentFormatVersionDetected Drilldown into DocumentFormatDetected Drilldown into DocumentFormatDetailsDetected Drilldown into DestinationsStatuses Drilldown into CompressionDetected Drilldown into WarningsCount Drilldown into UpTime Drilldown into TimeAtProcessing Drilldown into TimeAtCreation Drilldown into TimeAtCompleted Drilldown into NumberOfInterveningJobs Drilldown into NumberOfDocuments Drilldown into MoreInfo Drilldown into KOctetsProcessed Drilldown into JobUri Drilldown into JobStateReasons Drilldown into JobStateMessage Drilldown into JobState Drilldown into JobPagesCompletedCurrentCopy Drilldown into JobPagesCompleted Drilldown into JobOriginatingUserUri Drilldown into JobOriginatingUserName Drilldown into JobOriginatingUserAuthenticationInfo Drilldown into JobUuid Drilldown into JobId Drilldown into ErrorsCount Drilldown into DocumentAccessErrors Drilldown into DetailedStatusMessages Drilldown into DateTimeAtProcessing Drilldown into DateTimeAtCreation Drilldown into DateTimeAtCompleted Drilldown into ImagingJobStatusType Drilldown into FaxOutJobStatusTypeXSD Diagram of FaxOutJobStatus
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:element name="FaxOutJobStatus" type="FaxOutJobStatusType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DateTimeAtCompleted pwg:DateTimeAtCompleted (1) (1)
DateTimeAtCreation pwg:DateTimeAtCreation (1) (1)
DateTimeAtProcessing pwg:DateTimeAtProcessing (1) (1)
DetailedStatusMessages pwg:DetailedStatusMessages 0 (1)
DocumentAccessErrors pwg:DocumentAccessErrors 0 (1)
ErrorsCount pwg:ErrorsCount 0 (1)
JobId pwg:JobId (1) (1)
JobUuid pwg:JobUuid (1) (1)
JobOriginatingUserAuthenticationInfo pwg:JobOriginatingUserAuthenticationInfo (1) (1)
JobOriginatingUserName pwg:JobOriginatingUserName (1) (1)
JobOriginatingUserUri pwg:JobOriginatingUserUri 0 (1)
JobPagesCompleted pwg:JobPagesCompleted 0 (1)
JobPagesCompletedCurrentCopy pwg:JobPagesCompletedCurrentCopy 0 (1)
JobState pwg:JobState (1) (1)
JobStateMessage pwg:JobStateMessage 0 (1)
JobStateReasons pwg:JobStateReasons (1) (1)
JobUri pwg:JobUri 0 (1)
KOctetsProcessed pwg:KOctetsProcessed 0 (1)
MoreInfo pwg:MoreInfo 0 (1)
NumberOfDocuments pwg:NumberOfDocuments 0 (1)
NumberOfInterveningJobs pwg:NumberOfInterveningJobs 0 (1)
TimeAtCompleted pwg:TimeAtCompleted 0 (1)
TimeAtCreation pwg:TimeAtCreation 0 (1)
TimeAtProcessing pwg:TimeAtProcessing 0 (1)
UpTime pwg:UpTime 0 (1)
WarningsCount pwg:WarningsCount 0 (1)
CompressionDetected pwg:CompressionDetected 0 (1)
DestinationsStatuses pwg:DestinationsStatuses 0 (1)
DocumentFormatDetailsDetected pwg:DocumentFormatDetailsDetected 0 (1)
DocumentFormatDetected pwg:DocumentFormatDetected 0 (1)
DocumentFormatVersionDetected pwg:DocumentFormatVersionDetected 0 (1)
FaxOutJobCounters pwg:FaxOutJobCounters 0 (1)
ImagesCompleted pwg:ImagesCompleted (1) (1)
JobReceivingUri pwg:JobReceivingUri (1) (1)
JobSendingUri pwg:JobSendingUri (1) (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
