Documentation for Semantic Model 3
Definition Type: ComplexType
Name: FaxInServiceCapabilitiesType
Namespace: http://www.pwg.org/schemas/2016/01/sm
Containing Schema: FaxInService.xsd
Abstract

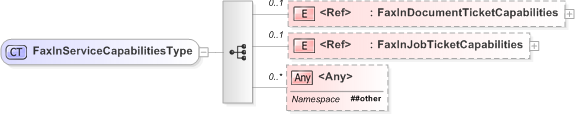

Collapse XSD Schema Diagram:
Drilldown into FaxInJobTicketCapabilities Drilldown into FaxInDocumentTicketCapabilitiesXSD Diagram of FaxInServiceCapabilitiesType
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="FaxInServiceCapabilitiesType">
    <xs:sequence>
        <xs:element ref="FaxInDocumentTicketCapabilities" minOccurs="0" />
        <xs:element ref="FaxInJobTicketCapabilities" minOccurs="0" />
        <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
FaxInDocumentTicketCapabilities pwg:FaxInDocumentTicketCapabilities 0 (1)
FaxInJobTicketCapabilities pwg:FaxInJobTicketCapabilities 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Derivation Tree:
Collapse References:
pwg:FaxInServiceCapabilities, pwg:FaxInServiceCapabilitiesReady
