Documentation for Semantic Model 3
Definition Type: ComplexType
Name: EmailOutJobProcessingCapabilitiesType
Namespace: http://www.pwg.org/schemas/2016/01/sm
Type: pwg:ImagingJobProcessingCapabilitiesType
Containing Schema: EmailOutService.xsd
Abstract

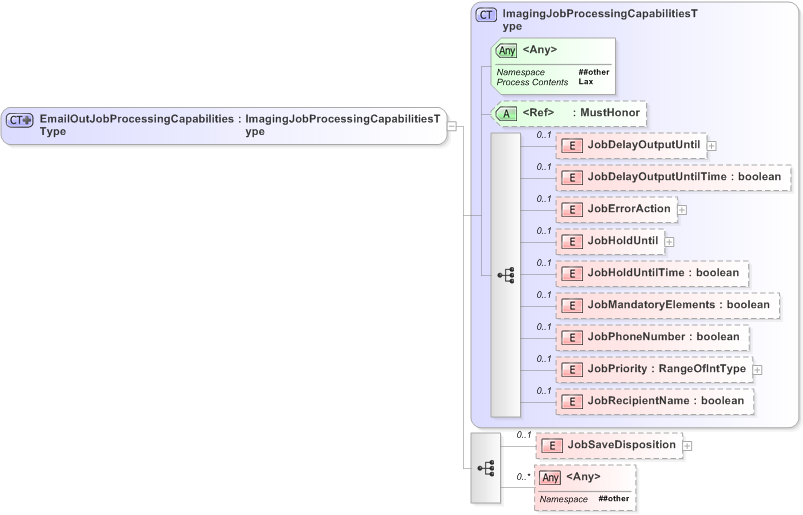

Collapse XSD Schema Diagram:
Drilldown into JobSaveDisposition Drilldown into JobRecipientName Drilldown into JobPriority Drilldown into JobPhoneNumber Drilldown into JobMandatoryElements Drilldown into JobHoldUntilTime Drilldown into JobHoldUntil Drilldown into JobErrorAction Drilldown into JobDelayOutputUntilTime Drilldown into JobDelayOutputUntil Drilldown into MustHonor Drilldown into ImagingJobProcessingCapabilitiesTypeXSD Diagram of EmailOutJobProcessingCapabilitiesType
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="EmailOutJobProcessingCapabilitiesType">
    <xs:complexContent>
        <xs:extension base="ImagingJobProcessingCapabilitiesType">
            <xs:sequence>
                <xs:element name="JobSaveDisposition" minOccurs="0">
                    <xs:complexType>
                        <xs:sequence>
                            <xs:element name="SaveDisposition" minOccurs="0">
                                <xs:complexType>
                                    <xs:sequence>
                                        <xs:element name="AllowedValues" type="SaveDispositionType" maxOccurs="unbounded" />
                                    </xs:sequence>
                                </xs:complexType>
                            </xs:element>
                            <xs:element name="SaveInfo" minOccurs="0">
                                <xs:complexType>
                                    <xs:sequence>
                                        <xs:element name="SaveDocumentFormat" minOccurs="0">
                                            <xs:complexType>
                                                <xs:sequence>
                                                    <xs:element name="AllowedValues" type="SaveDocumentFormatType" maxOccurs="unbounded" />
                                                </xs:sequence>
                                            </xs:complexType>
                                        </xs:element>
                                        <xs:element name="SaveLocation" minOccurs="0">
                                            <xs:complexType>
                                                <xs:sequence>
                                                    <xs:element ref="UriSchemSupported" maxOccurs="unbounded" />
                                                </xs:sequence>
                                            </xs:complexType>
                                        </xs:element>
                                        <xs:element name="SaveName" type="xs:boolean" minOccurs="0" />
                                        <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
                                    </xs:sequence>
                                </xs:complexType>
                            </xs:element>
                            <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
                        </xs:sequence>
                    </xs:complexType>
                </xs:element>
                <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
JobDelayOutputUntil pwg:JobDelayOutputUntil 0 (1)
JobDelayOutputUntilTime pwg:JobDelayOutputUntilTime 0 (1)
JobErrorAction pwg:JobErrorAction 0 (1)
JobHoldUntil pwg:JobHoldUntil 0 (1)
JobHoldUntilTime pwg:JobHoldUntilTime 0 (1)
JobMandatoryElements pwg:JobMandatoryElements 0 (1)
JobPhoneNumber pwg:JobPhoneNumber 0 (1)
JobPriority pwg:JobPriority 0 (1)
JobRecipientName pwg:JobRecipientName 0 (1)
JobSaveDisposition pwg:JobSaveDisposition 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
MustHonor pwg:MustHonor (Optional)
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
pwg:EmailOutJobProcessingCapabilities
