Documentation for Semantic Model 3
Definition Type: Element
Name: EmailOutJob
Namespace: http://www.pwg.org/schemas/2016/01/sm
Type: pwg:EmailOutJobType
Containing Schema: EmailOutService.xsd
Abstract

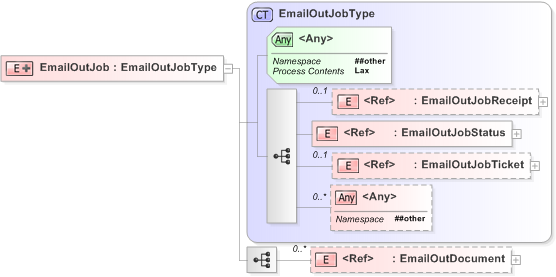

Collapse XSD Schema Diagram:
Drilldown into EmailOutDocument Drilldown into EmailOutJobTicket Drilldown into EmailOutJobStatus Drilldown into EmailOutJobReceipt Drilldown into EmailOutJobTypeXSD Diagram of EmailOutJob
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:element name="EmailOutJob">
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="EmailOutJobType">
                <xs:sequence>
                    <xs:element ref="EmailOutDocument" minOccurs="0" maxOccurs="unbounded" />
                </xs:sequence>
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EmailOutJobReceipt pwg:EmailOutJobReceipt 0 (1)
EmailOutJobStatus pwg:EmailOutJobStatus (1) (1)
EmailOutJobTicket pwg:EmailOutJobTicket 0 (1)
EmailOutDocument pwg:EmailOutDocument 0 unbounded
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
