Documentation for Semantic Model 3
Definition Type: ComplexType
Name: EmailInDocumentDescriptionCapabilitiesType
Namespace: http://www.pwg.org/schemas/2016/01/sm
Type: pwg:ImagingDocumentDescriptionCapabilitiesType
Containing Schema: EmailInService.xsd
Abstract

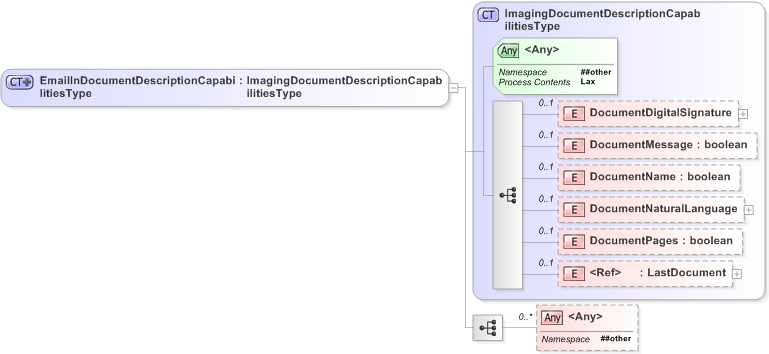

Collapse XSD Schema Diagram:
Drilldown into LastDocument Drilldown into DocumentPages Drilldown into DocumentNaturalLanguage Drilldown into DocumentName Drilldown into DocumentMessage Drilldown into DocumentDigitalSignature Drilldown into ImagingDocumentDescriptionCapabilitiesTypeXSD Diagram of EmailInDocumentDescriptionCapabilitiesType
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="EmailInDocumentDescriptionCapabilitiesType">
    <xs:complexContent>
        <xs:extension base="ImagingDocumentDescriptionCapabilitiesType">
            <xs:sequence>
                <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
    <!-- EmailInDocumentDescription - group -->
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentDigitalSignature pwg:DocumentDigitalSignature 0 (1)
DocumentMessage pwg:DocumentMessage 0 (1)
DocumentName pwg:DocumentName 0 (1)
DocumentNaturalLanguage pwg:DocumentNaturalLanguage 0 (1)
DocumentPages pwg:DocumentPages 0 (1)
LastDocument pwg:LastDocument 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
pwg:EmailInDocumentDescriptionCapabilities
