Documentation for Semantic Model 3
Definition Type: ComplexType
Name: DocumentSecurityType
Namespace: http://www.pwg.org/schemas/2016/01/sm
Containing Schema: Security.xsd
Abstract

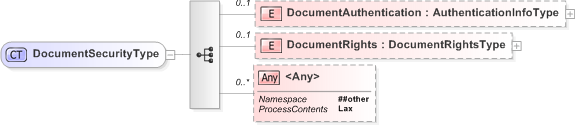

Collapse XSD Schema Diagram:
Drilldown into DocumentRights Drilldown into DocumentAuthenticationXSD Diagram of DocumentSecurityType
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="DocumentSecurityType">
    <xs:sequence>
        <xs:element name="DocumentAuthentication" type="AuthenticationInfoType" minOccurs="0" />
        <xs:element name="DocumentRights" type="DocumentRightsType" minOccurs="0" />
        <xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentAuthentication pwg:DocumentAuthentication 0 (1)
DocumentRights pwg:DocumentRights 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Derivation Tree:
Collapse References:
pwg:DocumentSecurity, pwg:DocumentSecurity
