Definition Type: Element
Name: DestinationsStatus
Namespace: http://www.pwg.org/schemas/2016/01/sm
Containing Schema: TransformService.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract

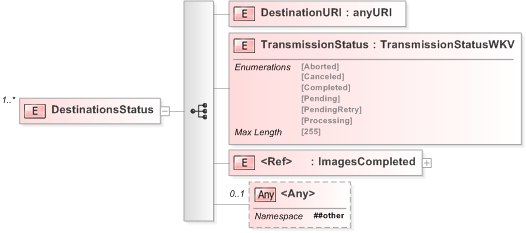

Collapse XSD Schema Diagram:
Drilldown into ImagesCompleted Drilldown into TransmissionStatus Drilldown into DestinationURIXSD Diagram of DestinationsStatus
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:element name="DestinationsStatus" maxOccurs="unbounded">
    <xs:complexType>
        <xs:sequence>
            <xs:element name="DestinationURI" type="xs:anyURI" />
            <xs:element name="TransmissionStatus" type="TransmissionStatusWKV" />
            <xs:element ref="ImagesCompleted" />
            <xs:any namespace="##other" minOccurs="0" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DestinationURI pwg:DestinationURI (1) (1)
TransmissionStatus pwg:TransmissionStatus (1) (1)
ImagesCompleted pwg:ImagesCompleted (1) (1)
<xs:any> Allowed namespace: '##other' 0 (1)
