Definition Type: Element
Name: CreateScanJobRequest
Namespace: http://www.pwg.org/schemas/2016/01/sm
Type: pwg:CreateScanJobRequestType
Containing Schema: PwgScanOpMsg.xsd
Abstract

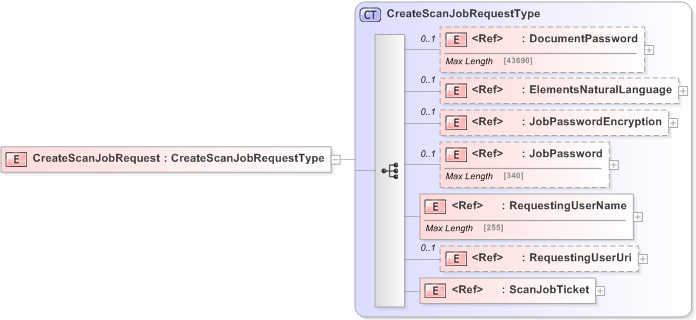

Collapse XSD Schema Diagram:
Drilldown into ScanJobTicket Drilldown into RequestingUserUri Drilldown into RequestingUserName Drilldown into JobPassword Drilldown into JobPasswordEncryption Drilldown into ElementsNaturalLanguage Drilldown into DocumentPassword Drilldown into CreateScanJobRequestTypeXSD Diagram of CreateScanJobRequest
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:element name="CreateScanJobRequest" type="CreateScanJobRequestType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentPassword pwg:DocumentPassword 0 (1)
ElementsNaturalLanguage pwg:ElementsNaturalLanguage 0 (1)
JobPasswordEncryption pwg:JobPasswordEncryption 0 (1)
JobPassword pwg:JobPassword 0 (1)
RequestingUserName pwg:RequestingUserName (1) (1)
RequestingUserUri pwg:RequestingUserUri 0 (1)
ScanJobTicket pwg:ScanJobTicket (1) (1)
Collapse Derivation Tree:
