Documentation for Semantic Model 3
Definition Type: Element
Name: CreatePrintJobRequest
Namespace: http://www.pwg.org/schemas/2016/01/sm
Type: pwg:CreatePrintJobRequestType
Containing Schema: PwgPrintOpMsg.xsd
Abstract

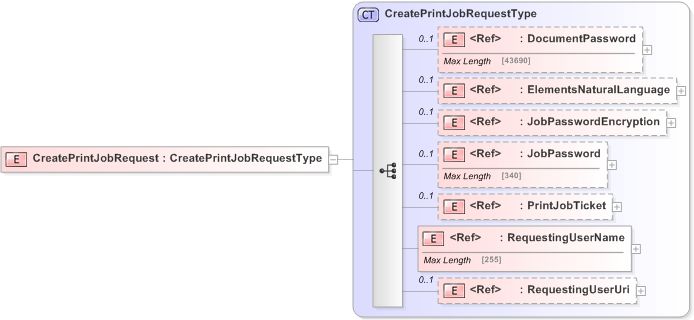

Collapse XSD Schema Diagram:
Drilldown into RequestingUserUri Drilldown into RequestingUserName Drilldown into PrintJobTicket Drilldown into JobPassword Drilldown into JobPasswordEncryption Drilldown into ElementsNaturalLanguage Drilldown into DocumentPassword Drilldown into CreatePrintJobRequestTypeXSD Diagram of CreatePrintJobRequest
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:element name="CreatePrintJobRequest" type="CreatePrintJobRequestType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentPassword pwg:DocumentPassword 0 (1)
ElementsNaturalLanguage pwg:ElementsNaturalLanguage 0 (1)
JobPasswordEncryption pwg:JobPasswordEncryption 0 (1)
JobPassword pwg:JobPassword 0 (1)
PrintJobTicket pwg:PrintJobTicket 0 (1)
RequestingUserName pwg:RequestingUserName (1) (1)
RequestingUserUri pwg:RequestingUserUri 0 (1)
Collapse Derivation Tree:
Generated using Liquid XML 2014 Designer Edition 12.1.2.5004

by Liquid Technologies Ltd
