Documentation for Semantic Model 3
Definition Type: ComplexType
Name: CreateJobSubscriptionsRequestType
Namespace: http://www.pwg.org/schemas/2016/01/sm
Containing Schema: PwgNotificationOpMsg.xsd
Abstract
Collapse XSD Schema Diagram:

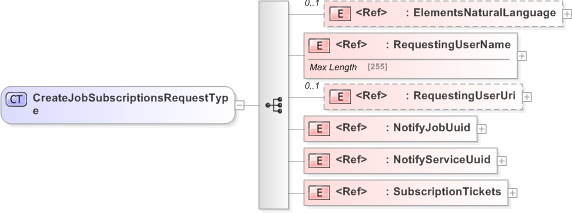

Drilldown into SubscriptionTickets Drilldown into NotifyServiceUuid Drilldown into NotifyJobUuid Drilldown into RequestingUserUri Drilldown into RequestingUserName Drilldown into ElementsNaturalLanguageXSD Diagram of CreateJobSubscriptionsRequestType
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="CreateJobSubscriptionsRequestType">
    <xs:sequence>
        <xs:element ref="ElementsNaturalLanguage" minOccurs="0" />
        <xs:element ref="RequestingUserName" />
        <xs:element ref="RequestingUserUri" minOccurs="0" />
        <xs:element ref="NotifyJobUuid" />
        <xs:element ref="NotifyServiceUuid" />
        <xs:element ref="SubscriptionTickets" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ElementsNaturalLanguage pwg:ElementsNaturalLanguage 0 (1)
RequestingUserName pwg:RequestingUserName (1) (1)
RequestingUserUri pwg:RequestingUserUri 0 (1)
NotifyJobUuid pwg:NotifyJobUuid (1) (1)
NotifyServiceUuid pwg:NotifyServiceUuid (1) (1)
SubscriptionTickets pwg:SubscriptionTickets (1) (1)
Collapse Derivation Tree:
Collapse References:
pwg:CreateJobSubscriptionsRequest
