Documentation for Semantic Model 3
Definition Type: ComplexType
Name: CoverSetType
Namespace: http://www.pwg.org/schemas/2016/01/sm
Containing Schema: Subunits.xsd
Abstract

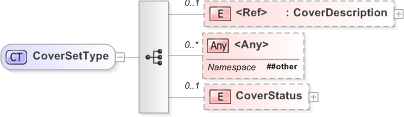

Collapse XSD Schema Diagram:
Drilldown into CoverStatus Drilldown into CoverDescriptionXSD Diagram of CoverSetType
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="CoverSetType">
    <xs:sequence>
        <xs:element ref="CoverDescription" minOccurs="0" />
        <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="CoverStatus" minOccurs="0">
            <xs:complexType>
                <xs:sequence>
                    <xs:element ref="Id" />
                </xs:sequence>
            </xs:complexType>
        </xs:element>
    </xs:sequence>
    <!-- Cover - type -->
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CoverDescription pwg:CoverDescription 0 (1)
CoverStatus pwg:CoverStatus 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Derivation Tree:
Collapse References:
pwg:Cover
