Documentation for Semantic Model 3
Definition Type: ComplexType
Name: CopyJobProcessingType
Namespace: http://www.pwg.org/schemas/2016/01/sm
Type: pwg:ImagingJobProcessingType
Containing Schema: CopyService.xsd
Abstract

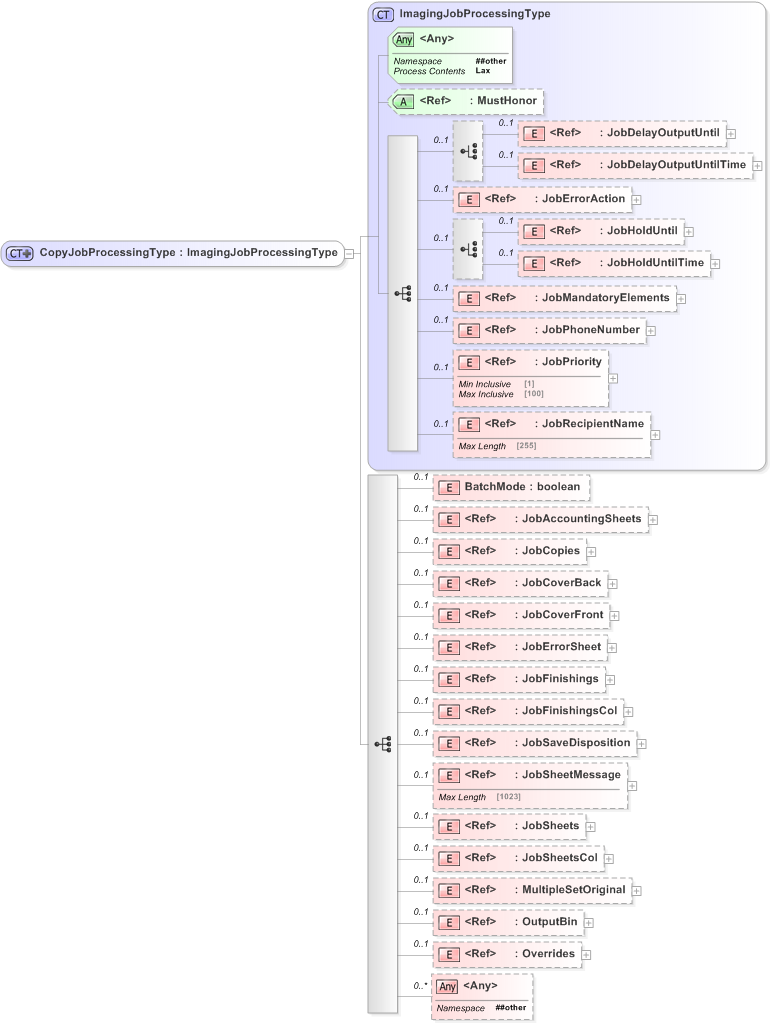

Collapse XSD Schema Diagram:
Drilldown into Overrides Drilldown into OutputBin Drilldown into MultipleSetOriginal Drilldown into JobSheetsCol Drilldown into JobSheets Drilldown into JobSheetMessage Drilldown into JobSaveDisposition Drilldown into JobFinishingsCol Drilldown into JobFinishings Drilldown into JobErrorSheet Drilldown into JobCoverFront Drilldown into JobCoverBack Drilldown into JobCopies Drilldown into JobAccountingSheets Drilldown into BatchMode Drilldown into JobRecipientName Drilldown into JobPriority Drilldown into JobPhoneNumber Drilldown into JobMandatoryElements Drilldown into JobHoldUntilTime Drilldown into JobHoldUntil Drilldown into JobErrorAction Drilldown into JobDelayOutputUntilTime Drilldown into JobDelayOutputUntil Drilldown into MustHonor Drilldown into ImagingJobProcessingTypeXSD Diagram of CopyJobProcessingType
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="CopyJobProcessingType">
    <xs:complexContent>
        <xs:extension base="ImagingJobProcessingType">
            <xs:sequence>
                <!-- Copy job processing references here -->
                <xs:element name="BatchMode" type="xs:boolean" minOccurs="0" />
                <xs:element ref="JobAccountingSheets" minOccurs="0" />
                <xs:element ref="JobCopies" minOccurs="0" />
                <xs:element ref="JobCoverBack" minOccurs="0" />
                <xs:element ref="JobCoverFront" minOccurs="0" />
                <xs:element ref="JobErrorSheet" minOccurs="0" />
                <xs:element ref="JobFinishings" minOccurs="0" />
                <xs:element ref="JobFinishingsCol" minOccurs="0" />
                <xs:element ref="JobSaveDisposition" minOccurs="0" />
                <xs:element ref="JobSheetMessage" minOccurs="0" />
                <xs:element ref="JobSheets" minOccurs="0" />
                <xs:element ref="JobSheetsCol" minOccurs="0" />
                <xs:element ref="MultipleSetOriginal" minOccurs="0" />
                <xs:element ref="OutputBin" minOccurs="0" />
                <xs:element ref="Overrides" minOccurs="0" />
                <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
    <!-- CopyJobProcessing - group -->
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
JobDelayOutputUntil pwg:JobDelayOutputUntil 0 (1)
JobDelayOutputUntilTime pwg:JobDelayOutputUntilTime 0 (1)
JobErrorAction pwg:JobErrorAction 0 (1)
JobHoldUntil pwg:JobHoldUntil 0 (1)
JobHoldUntilTime pwg:JobHoldUntilTime 0 (1)
JobMandatoryElements pwg:JobMandatoryElements 0 (1)
JobPhoneNumber pwg:JobPhoneNumber 0 (1)
JobPriority pwg:JobPriority 0 (1)
JobRecipientName pwg:JobRecipientName 0 (1)
BatchMode pwg:BatchMode 0 (1)
JobAccountingSheets pwg:JobAccountingSheets 0 (1)
JobCopies pwg:JobCopies 0 (1)
JobCoverBack pwg:JobCoverBack 0 (1)
JobCoverFront pwg:JobCoverFront 0 (1)
JobErrorSheet pwg:JobErrorSheet 0 (1)
JobFinishings pwg:JobFinishings 0 (1)
JobFinishingsCol pwg:JobFinishingsCol 0 (1)
JobSaveDisposition pwg:JobSaveDisposition 0 (1)
JobSheetMessage pwg:JobSheetMessage 0 (1)
JobSheets pwg:JobSheets 0 (1)
JobSheetsCol pwg:JobSheetsCol 0 (1)
MultipleSetOriginal pwg:MultipleSetOriginal 0 (1)
OutputBin pwg:OutputBin 0 (1)
Overrides pwg:Overrides 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
MustHonor pwg:MustHonor (Optional)
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
pwg:CopyJobProcessing
